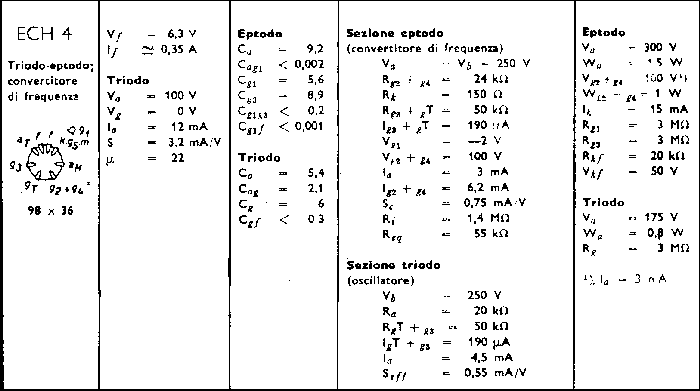

This is a short list of the Philips and Fivre vacuum tubes I have available. Its request is possibile just send me a message clicking Here. Note that all forms unfortunatly are in Italian language only. For an example, in this case of an ECH4 tube just click Here Remember that all tubes listed above are RECEIVERS TUBES, so here you can't find here some tubes as EL509 or similar that are high power tubes used in TV color stages or linear amplifiers. If you are in the case to change a tube with another similar but with a different socket don't remove the original socket, keep it in place, this in order to don't damage the originality of the radio.
|
|
Heather voltage or current |
Internal tube funcions |
| A 4V | RF detecting diode |
| B 180mA | Double low power triode |
| C 200mA | Triode |
| D 1,5V | Power triode |
| E 6,3V | Tethrode |
| F 12,6V | Penthode |
| G 5V | Esodo - Eptodo |
| H 150mA | Ottodo - Eptodo |
| K 2V | Power penthode |
| L | Power penthode |
| M 450mA | Tuning indicator (magic eye) |
| P 300mA | Gas rectifier |
| U 100mA | Rectifier diode |
| V 50mA | Double rectifier diode |
|
Socket type |
|
| 0 or 1 | Various sockets |
| 2 | Loctal |
| 3 | Octal |
| 4 | Rimlock |
| 5 | Soldering irons |
| 6 and 7 | Subminiature |
| 8 | Noval |
| 9 | 7 pins minitaure |
Example: For
an EL34 tube we will have:
E
= 6.3V heather voltage (Parallel configuration)
L = power penthode
3 = octal socket
4 = nn
 ABC1 ABL1 AF3 AF7 AK2 ALI AL 4 AX50 AZ1 AZ4 AZII AZ12 AZ31 AZ41 AZ50 DA 90 DAF91 DAF96 DCC90 DF91 DF92 DF96 DF97 DK91 DK92 DK96 DL92 DL93 DL94 DL95 DL96 DM70 DM71 EAA91 EABC80 EAF42 EB41 EB91 EBC3 EBC41 EBC81 EBF2 EBF80 EBF83 EBF89 EBL1 EC86 EC88 EC92 EC95 EC97 EC900 ECC 40 ECC81 ECC 82 ECC 83 ECC 84 ECC 85 ECC 86 ECC 88 ECC 91 ECC 189 ECH3 ECH4 ECH42 ECH81 ECH83 ECL80 ECL82 ECL86 EF6 EF9 EF40 EF41 EF42 EF80 EF83 EF85 EF86 EF89 EF95 EF97 EF98 EK2 EL2 EL3N EL33 EL34 EL41 EL42 EL83 EL84 EL86 EL95 EM4 EM34 EM80 EM81 EM84 EM87 EQ80 EY82 EZ2 EZ40 EZ80 EZ81 GZ34 KT88 PABC 80 PC 86 PC 88 PC 95 PC 97 PC 900 PCC84 PCC85 PCC88 PCC 189 PCL82 PCL86 PF86 PL82 PL83 PL84 PM84 PY82 UABC 80 UAF42 UBC41 UBC81 UBF89 UC92 UCC85 UCH42 UCH81 UCL 82 UF41 UF80 UF85 UF89 UL41 UL84 UM80 UY41 UY82 UY85 UY89 |
2A3 2A5 2A6 2A7 2B7 3A4 3D6 3Q5GT 5R4GY 5U4GA 5Y3GR 5Y4G 6A6 6AB7GM 6AC7GM 6AG5 6AH6 6AW5G 6AW5G1 6B6G 6B6GT 6B7 6B8G 6B8GT 6B07A 6C6 6D6 6D8G 6D8GT 6EA7G 6EA7GT 6F7 6G6G 6G6GT 6H8G 6H6GT 6J6 6K8G 6K8GT 6K8G 6K8TE 6L7G 6L7GT 6NK7GT 6P7G 6S7G 6JS7GT 6SH7GT 6T7G 6T7GT 6TE9 6U7G 6W7G 6W7GT 12AQ5 12C8GT 12EA7GT 12NK7GT 12TE9 24A 27 35 35B5 36 37 41 43 45 47 53 56 57 58 75 76 77 78 79 85 89 1603T 1625 1629 |
