Click on the picture to enlarge


Builder Philips
Model Super Inductande 736
Year 1934
Bands LW - MW
Tubes Yet to catalog
Tuning

Superinductance system

Power 110-220 Vca
Size 40 x 42 x 22
Power audio tube WE30
Magic eye Not present


Click on the picture to enlarge

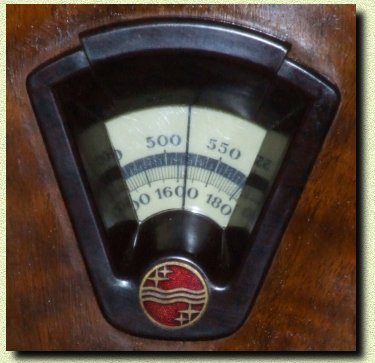

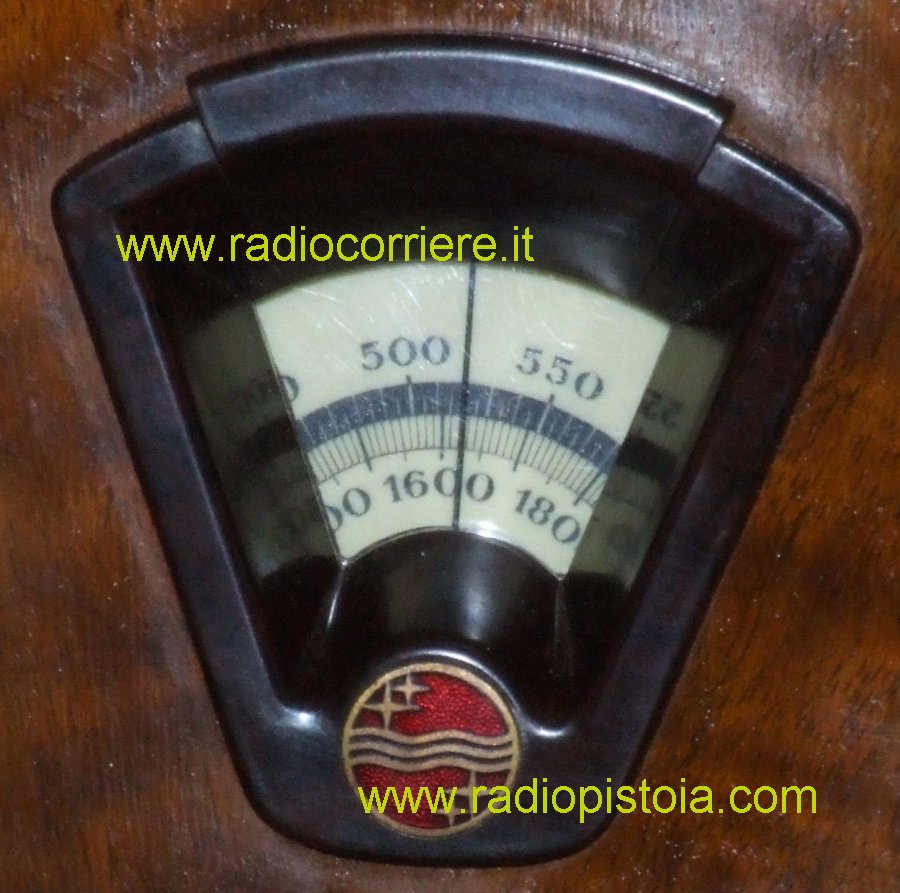

Detailed view of the dial scale, without names of the stations, only numbers, like in all the receivers built before the 1940.

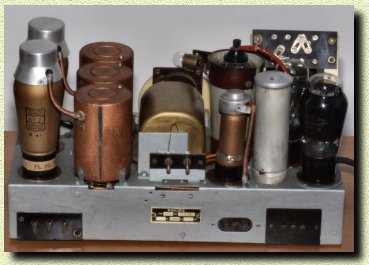

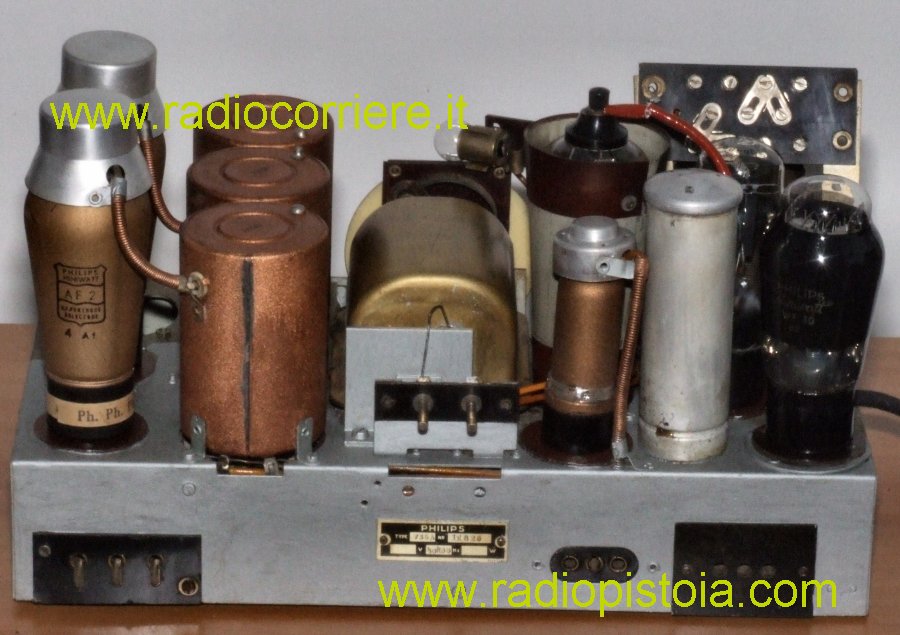

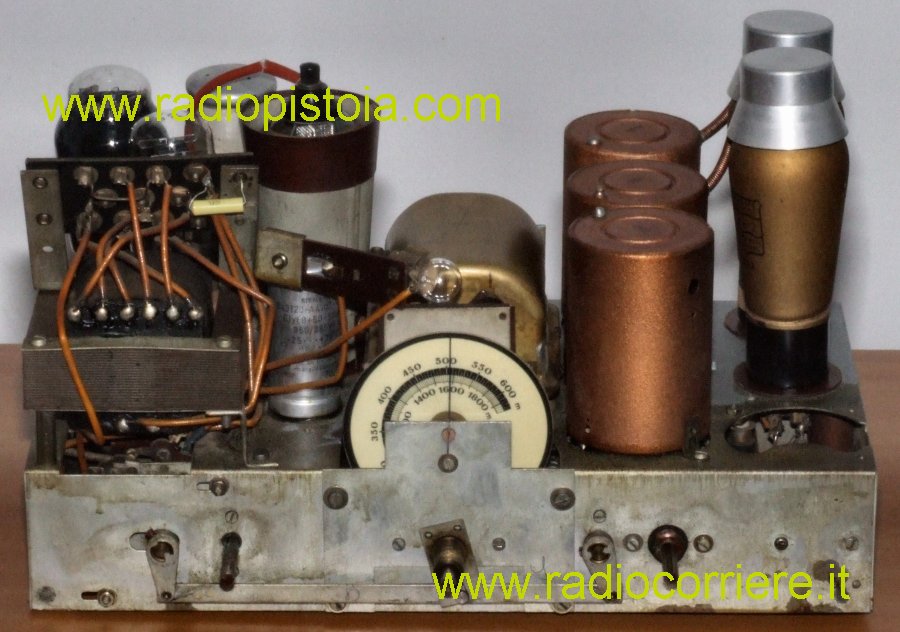

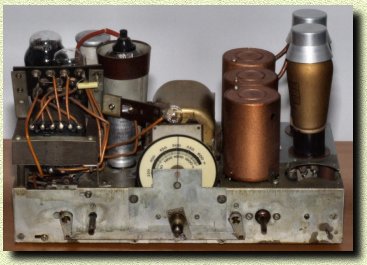

Rear view of the very heavy chassis, note the pink IF transfomers and its shield.

Front view of the reciver, the dial scale in the center and the tube top socket, shielded it too.


Click on the picture to enlarge

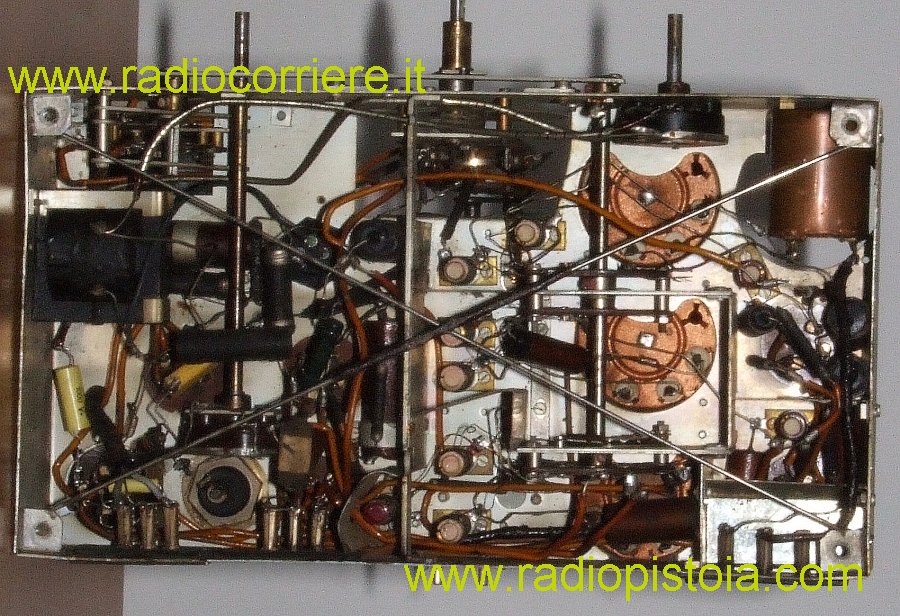

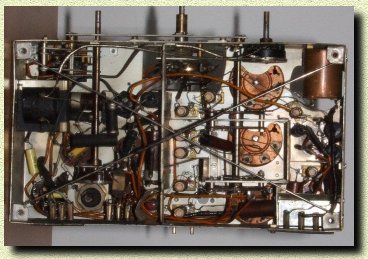

Bottom view of the chassis, note the great precision in the wiring and the ground shields.

Click on the picture to enlarge

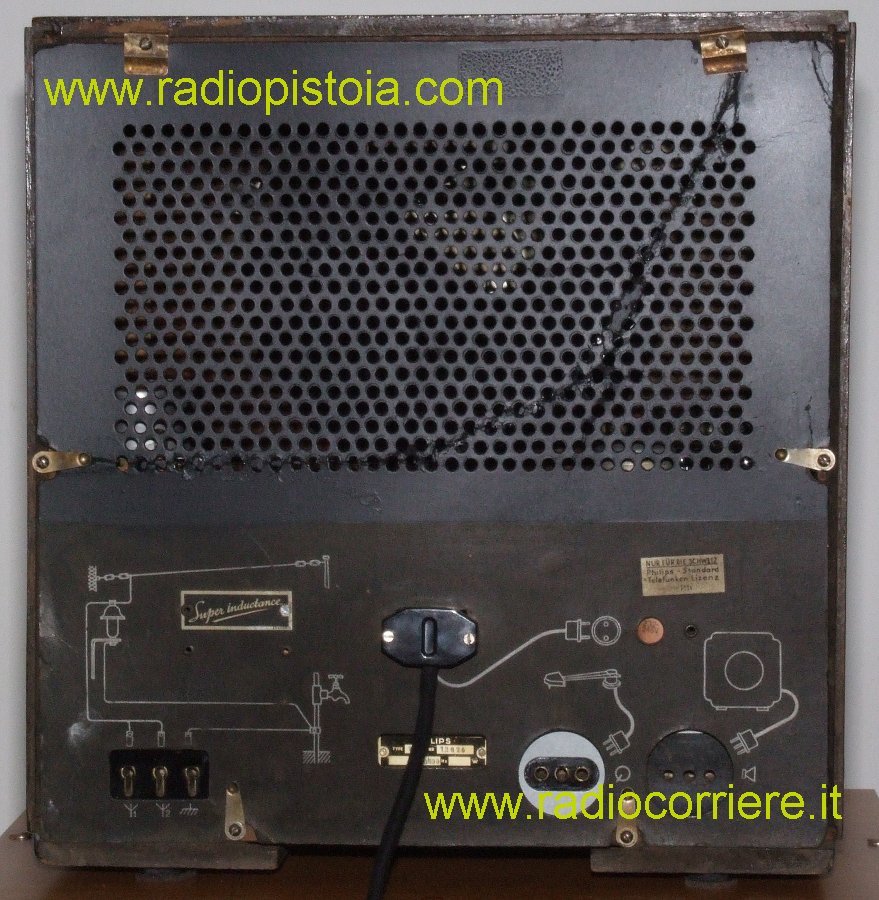

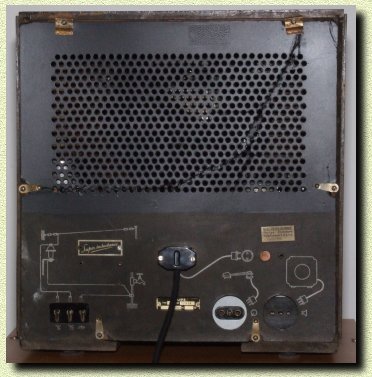

The back panel, quite a little broken but in good conditions, note that when removing it the AC plug disconnect the power from the receiver.


Click on the picture to enlarge
Detailed view of the furniture restoration, the old aspect is made with some alchol components and many patience..

Click on the picture to enlarge
Look at how the alchol painture is performed on the receiver.




Click on the picture to enlarge

Final view of the receiver, when all the restorations has been made.
