Builder Minerva
Model 465-1
Year 1940
Tubes ECH4 - EBF2 - EF6 - EL2 - WE54 - EM4
Bands OM - OC1 - OC2 - OC3 - OC4
Tuning Supereherodyne with MF at 470Khz
Power 110 125 140 160 220 Volt
Size 60 x 40 x 30
Power audio tube EL2
Magic eye EM4

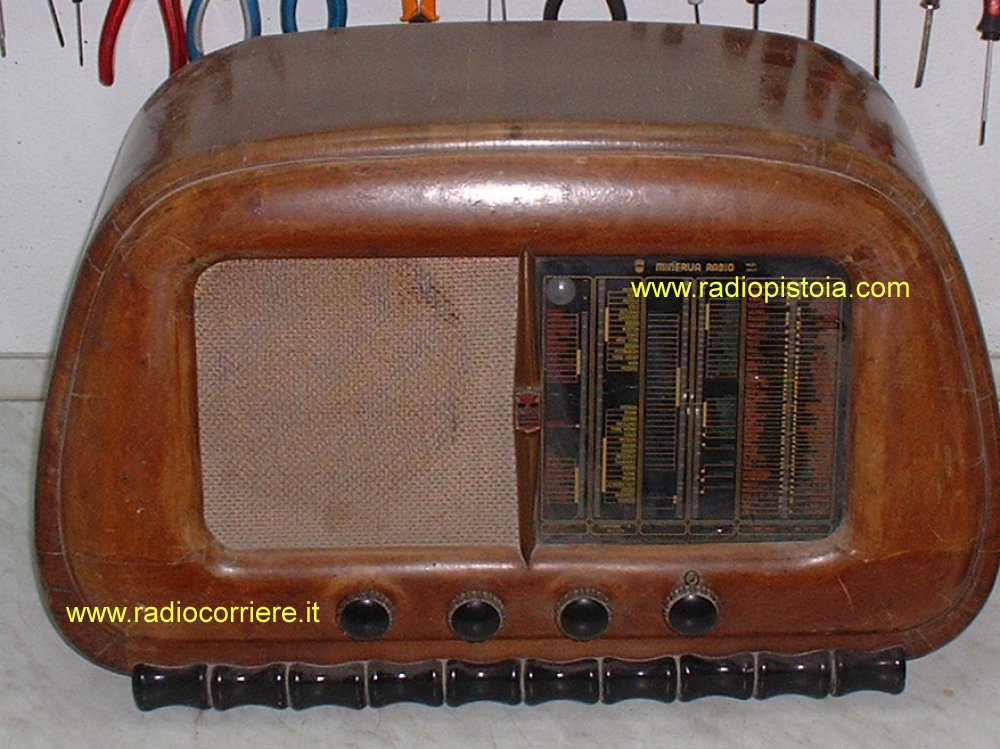

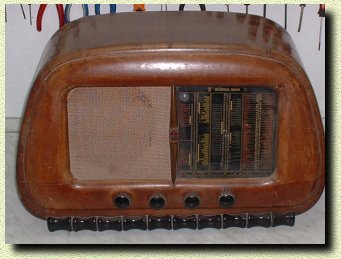

The receiver just arrived in the laboratory, seems in a quite good conditions.

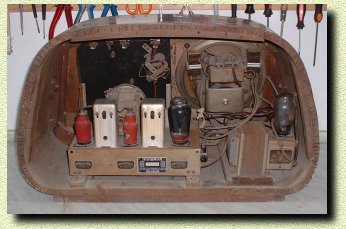

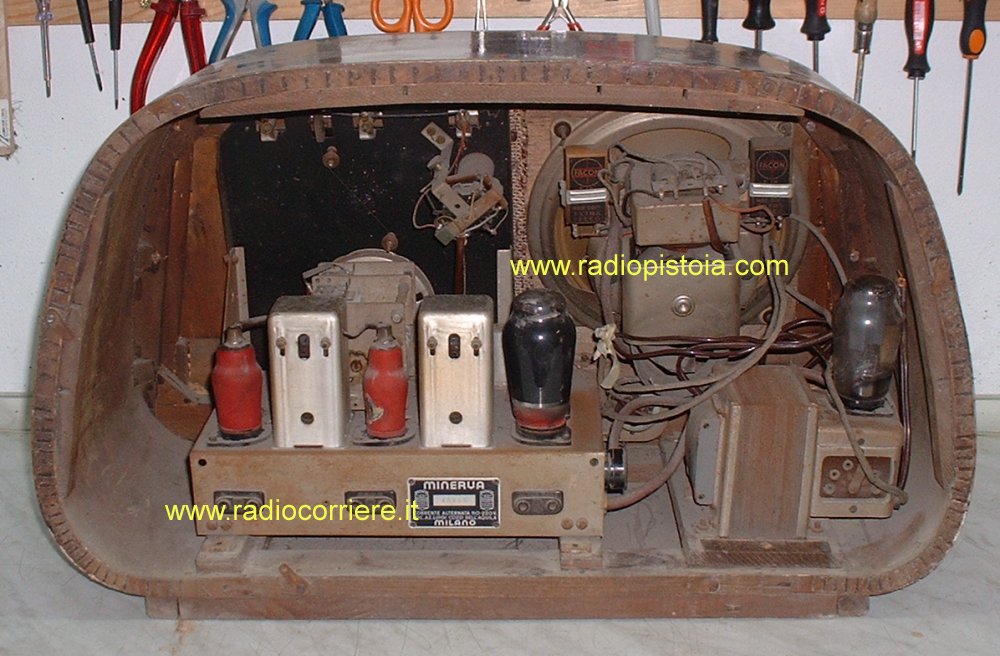

Internal view, only dust, no humar past restorations done.

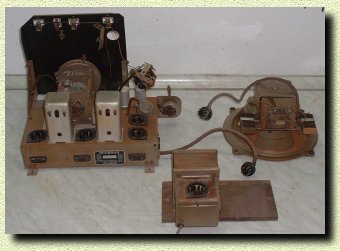

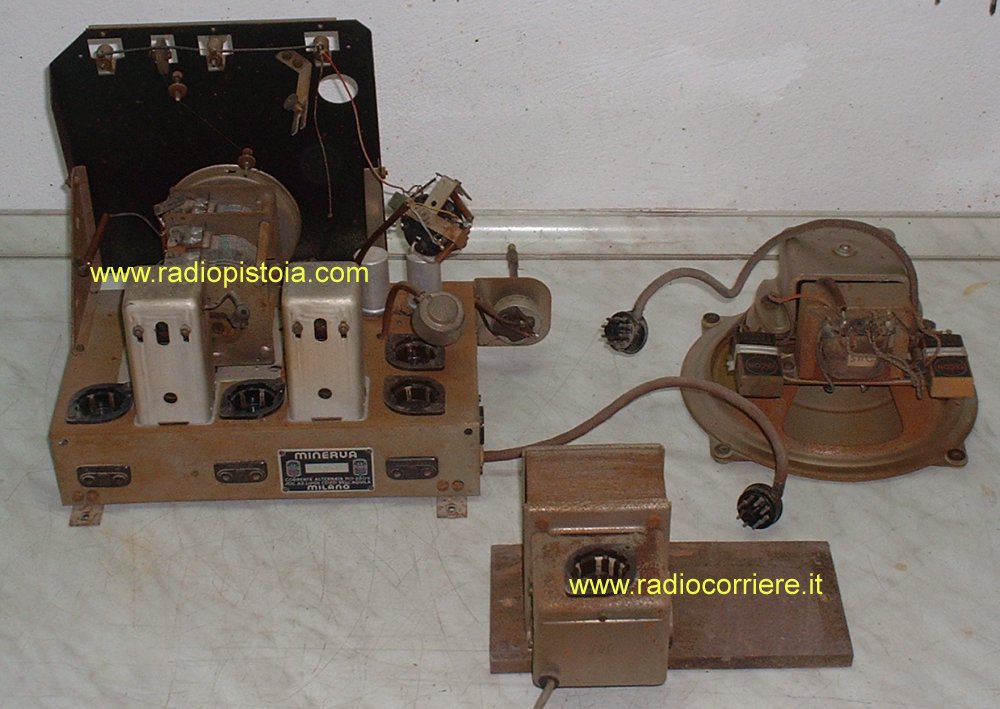

Detailed view of the chassis, with the power supply and the loudspeaker.

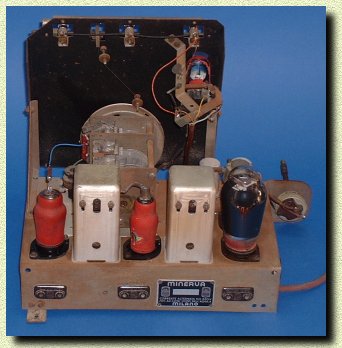

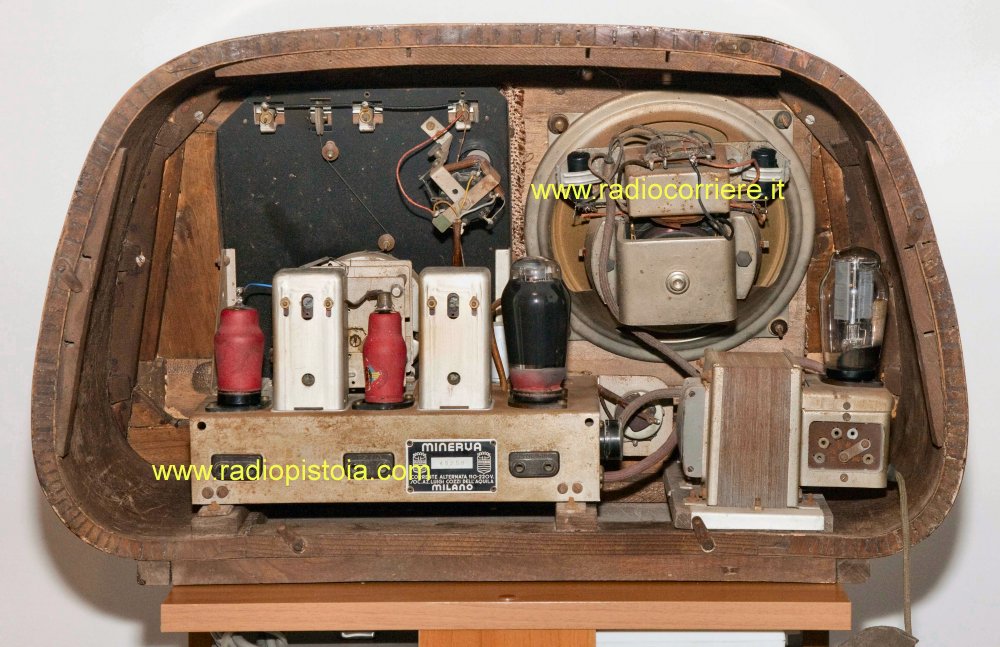

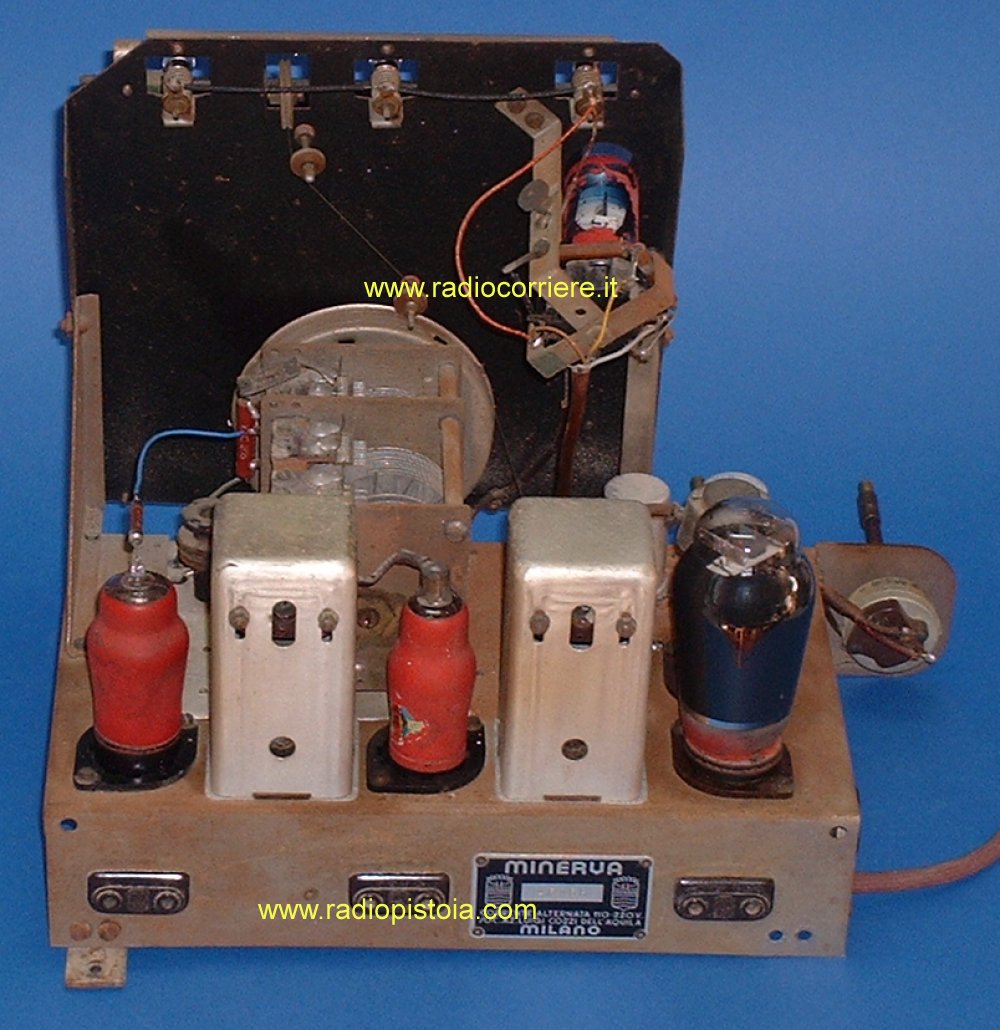

Here the chassis when restored, cleaned and ready to be inserted in the wood cabinet again.

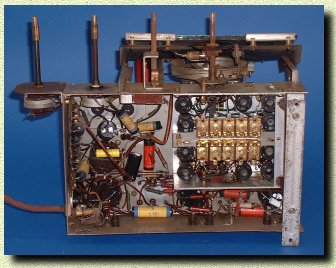

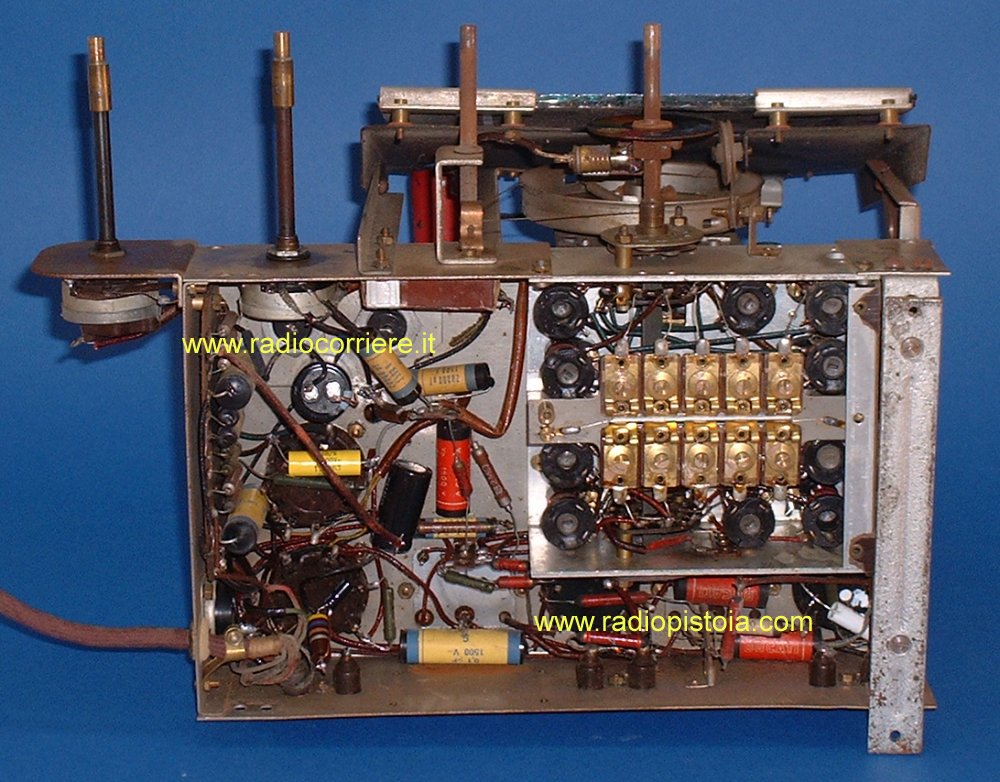

Bottom view of the chassis.

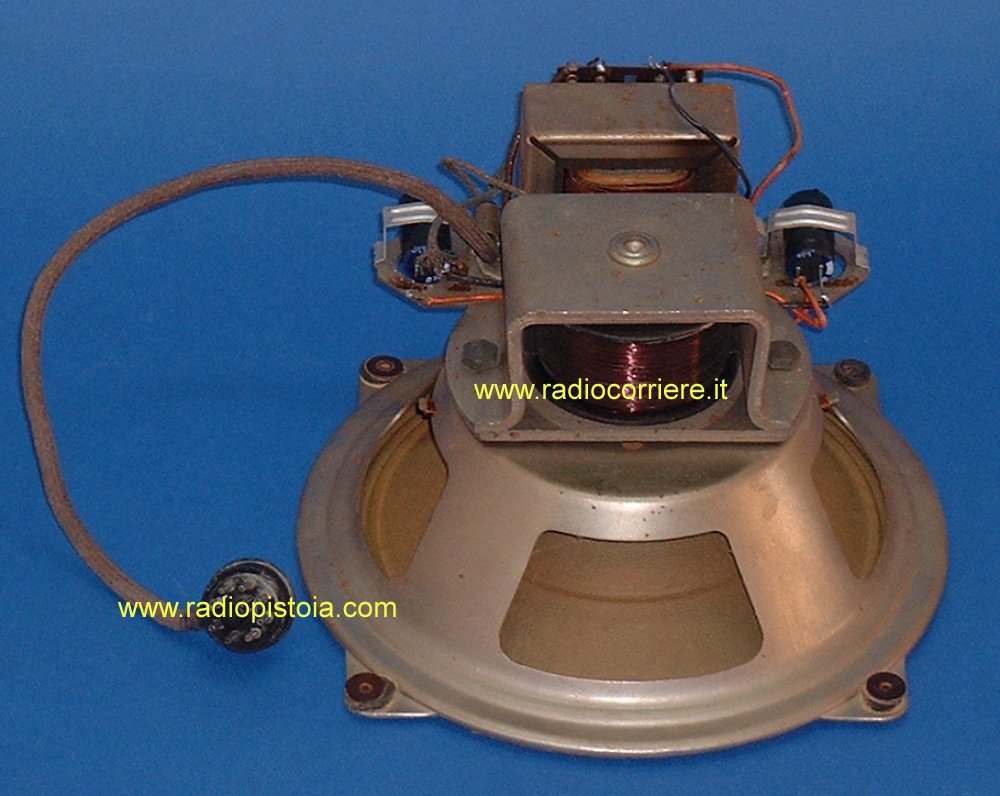

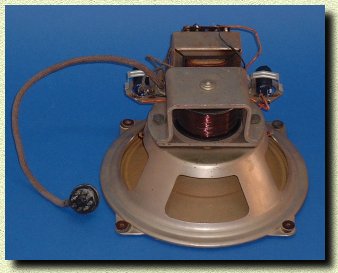

Detailed view of the big electromagnetic loudspeaker.

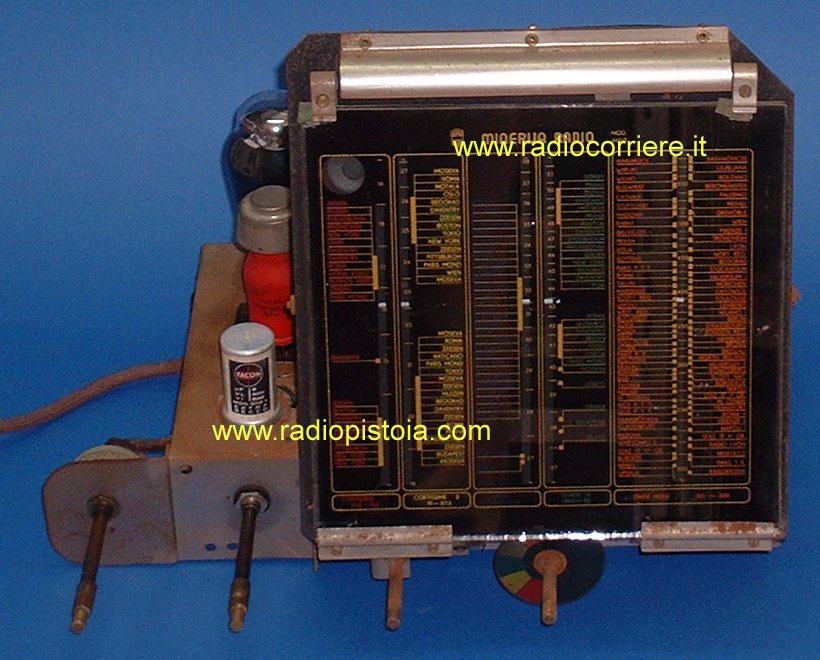

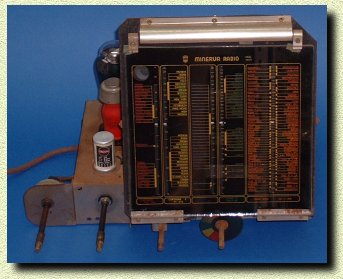

Front view of the chassis.

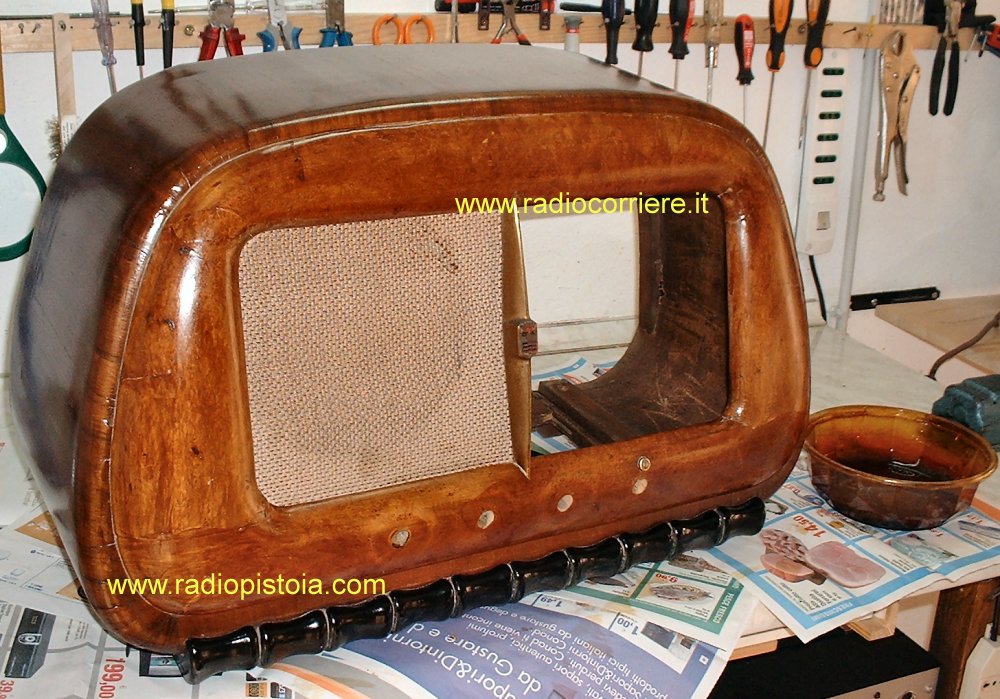

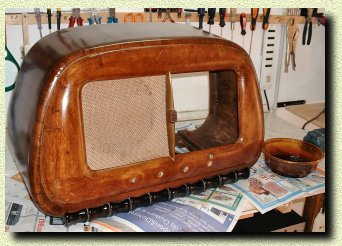

Here during the wood cabinet restoration.

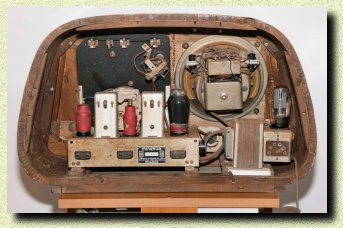

And now the receiver finished, it sounds good again!

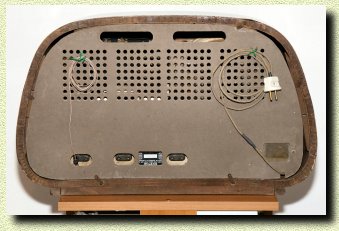

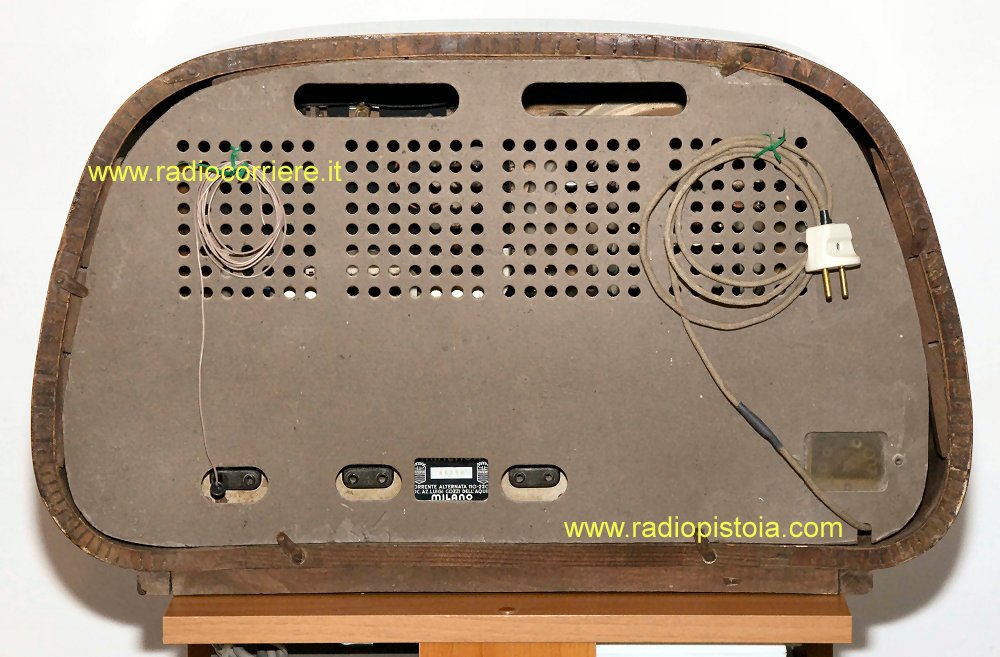

Read view of this big (and heavy) great Italian receiver.

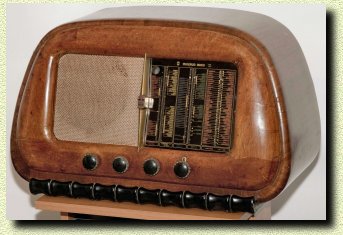

Here the radio, finished and perfectly restored.
