| Builder | Geloso |
| Model | G106 |
| Year | 1950 circa |
| Bands | SW1 - SW2 - AM - Phono |
| Tubes | AZ41 - ECH42 - EF41 - EBC41 - EL41 |
| Tuning | Supereterodyne with M.F. 469Khz |
| Power | 110-220 Vac |
| Size | 38X25X16 |
| Power audio tube | Penthode EL41 |
| Magic eye | Not present |
|

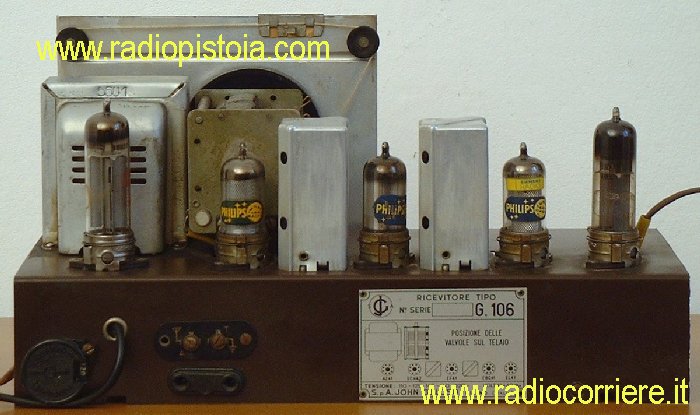

Detailed
view of the chassis after removed from its cabinet. This is a small, classic
5 tubes superetherodyne receiver. There are two bands, AM and SW and the
phono plug. The entire cabinet assembly is made of bakelite.
|
 |
 |

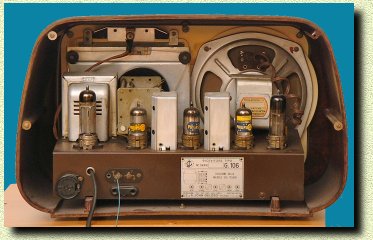

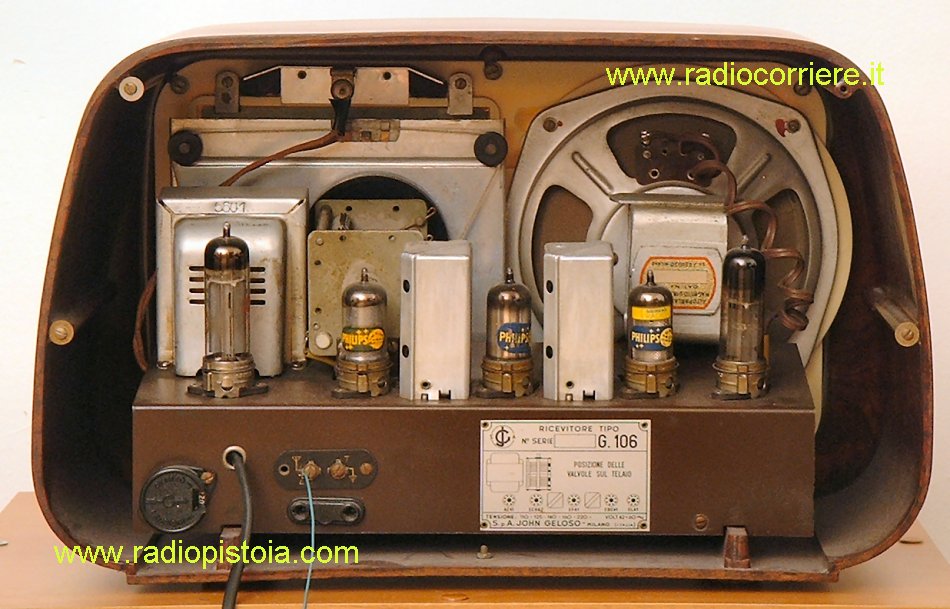

Internal rear view of this receiver. You can see the perfect conservation state of this little radio, some dust and nothing else to remove in order to restore it.. |
|

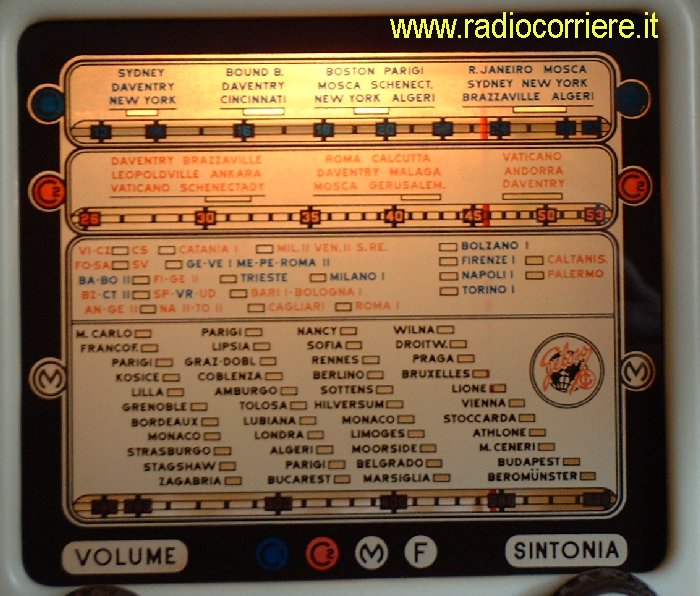

Nice view of the tuning glass, this component is in perfect state, looks new ! There is only a lamp to glow it. During the restoration process the only broken thing was the tuning cord damaged. |
|
 |
Very important, before reinsert the tubes in their socket it's indispensable to clean them in order to remove dust and rusty. Some difficults receiver problems are due just simply to this problem. |
|

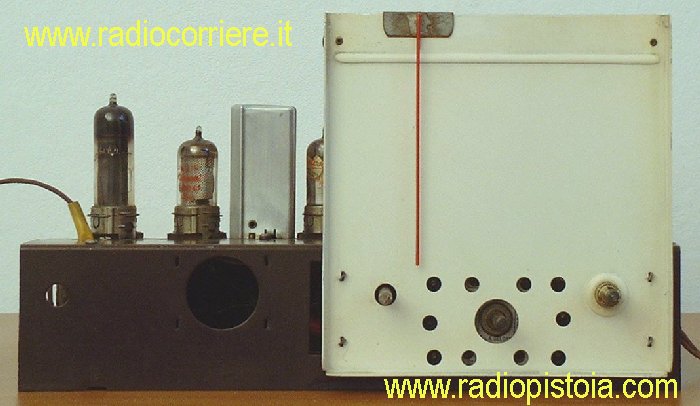

Front view of the receiver. This radio have only three external knobs: On-off, Band selector and tuning. Even this radio looks quite a little it have a great sensibility and selectivity, more than bigger receivers ones. |
|
|
|

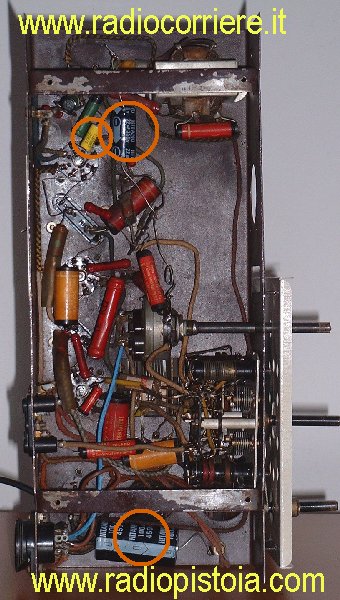

Bottom chassis view from the components side. It's very simple, note that the Geloso AF group is the same used in many other receivers of others companies. Infact the Geloso sell many electronics components such as capacitors, AF groups, transfomers and so on.. |
|

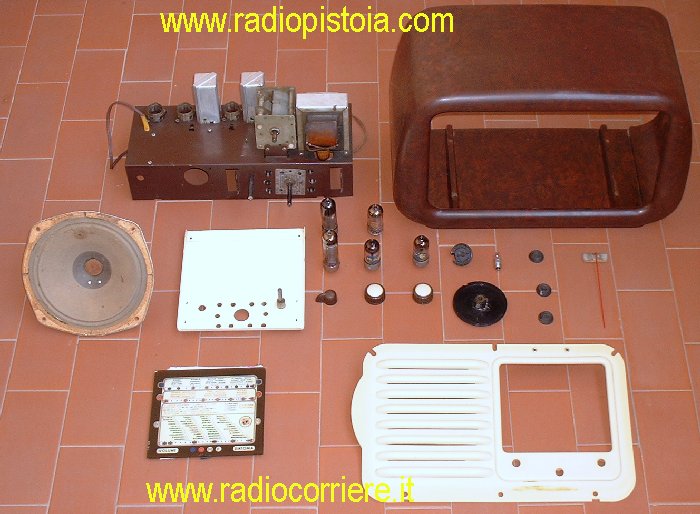

This picture was token during the restoration and cleaning activity. It was very simply, just an half a day to clean all parts, cabinets, tubes and reassemblying. |
|
|
|

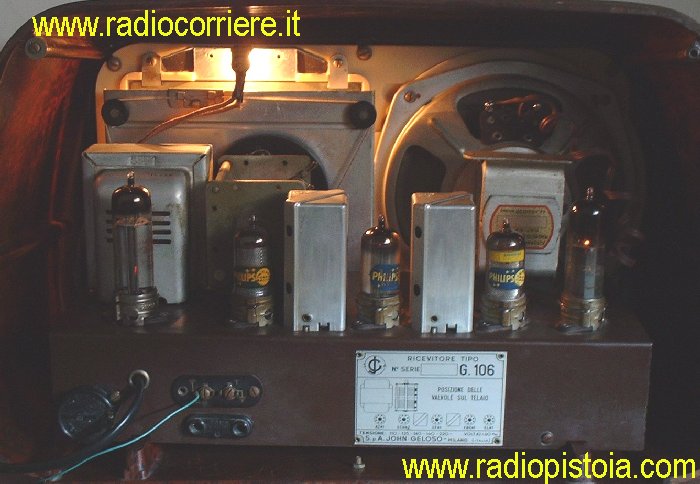

Another nice "night" view of the receiver from its rear side while power on. You can see the heather of each tube glows.. |
|
