Builder Nordmende
Model Elektra 58
Year 1950
Bands LW - MW - SW
Tubes ECC85 ECH81 EF89 EABC80 EM34 EL84
Tuning Supereterodyne with MF 465Khz and 10.7Mhz
Power 110, 125, 150, 220, 240 Vac
Size 40 x 26 x 20 cm about
Power audio tube EL84
Magic eye EM34

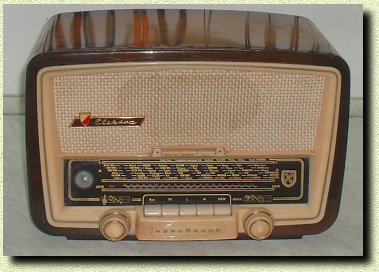

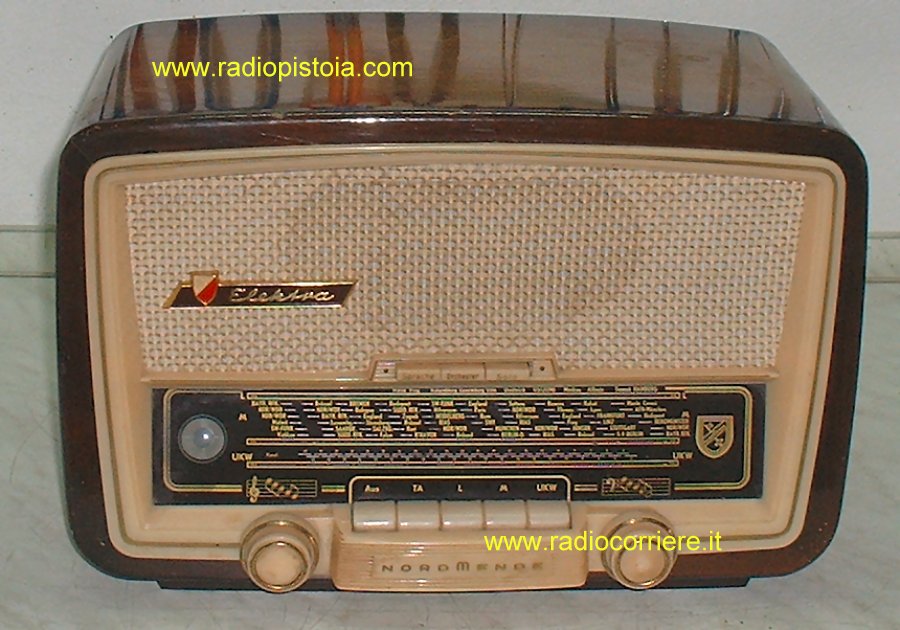

Front view of the receiver, just arrived in the laboratory.

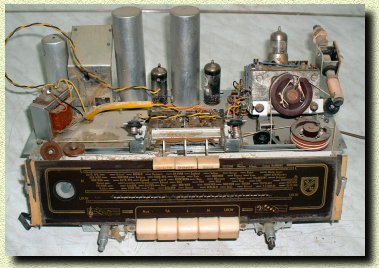

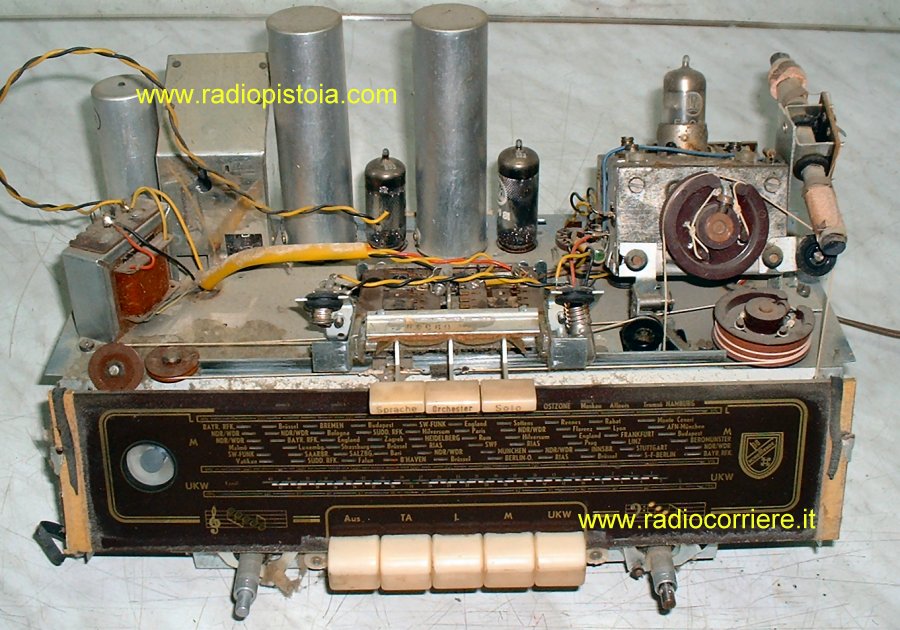

Detailed view of the chassis, remove from its (VERY LITTLE) wood cabinet..

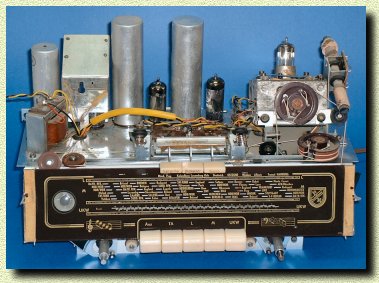

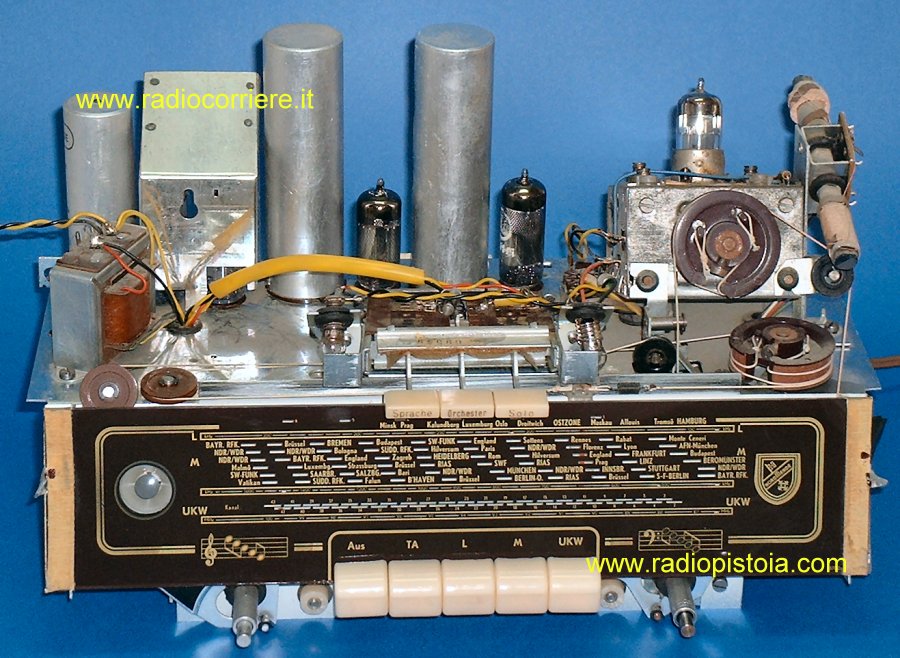

Front view of the chassis, at the end of its restoration and cleaning.

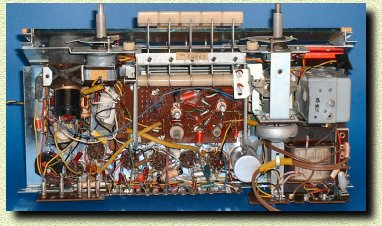

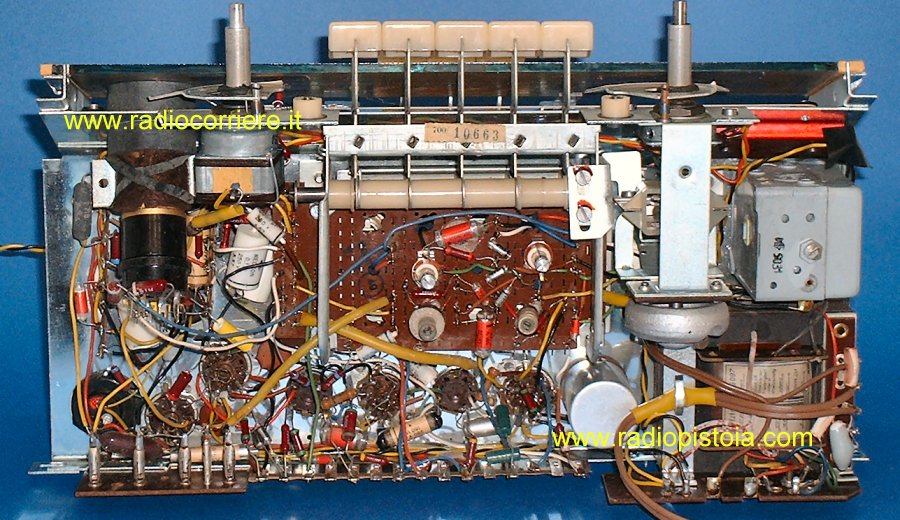

Bottom view, note the great complexity of this little but complete receiver.

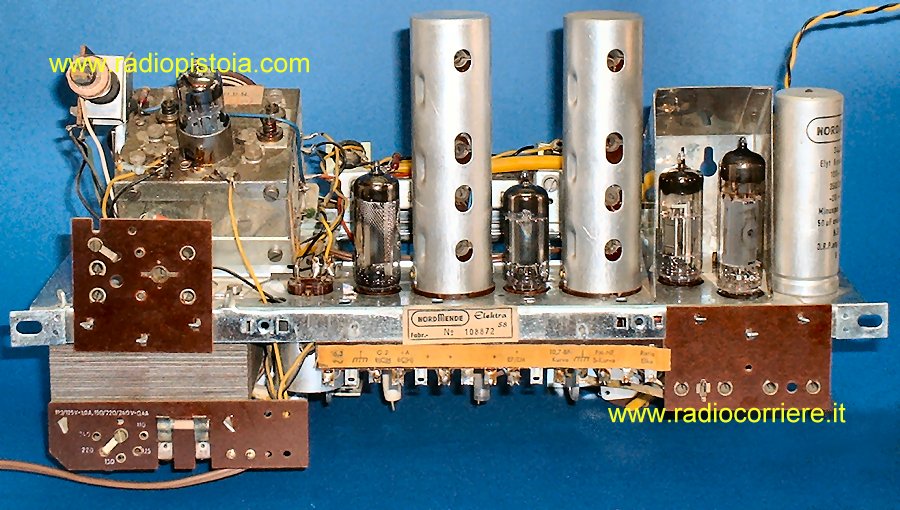

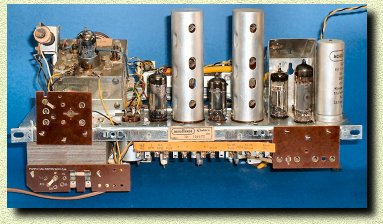

Rear view with the big IF trasfomers

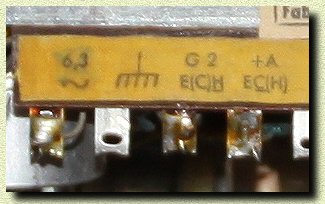

Closeup of the test-point legend, an useful map when repairing the radio.

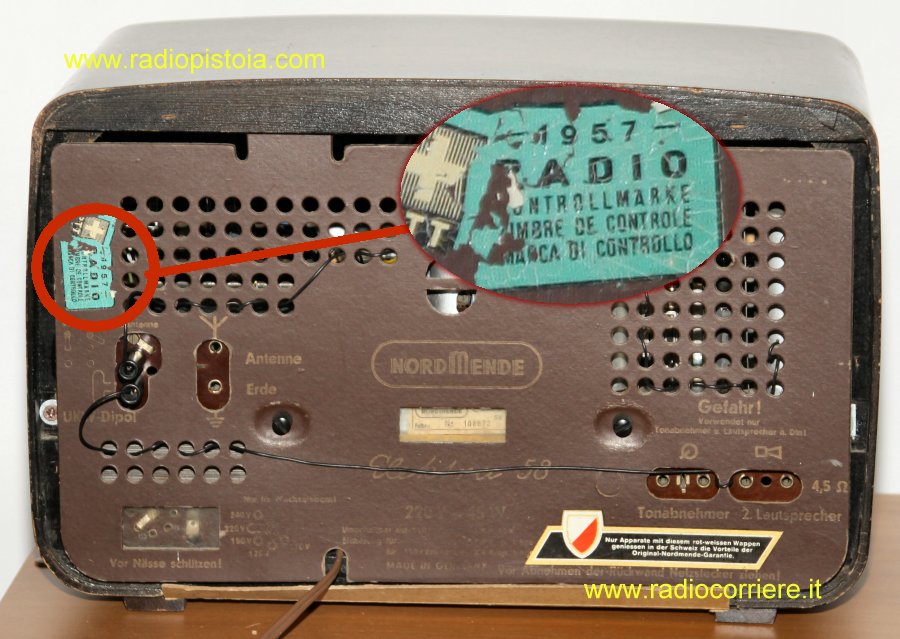

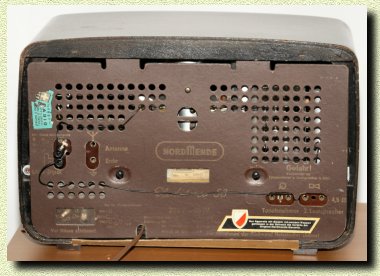

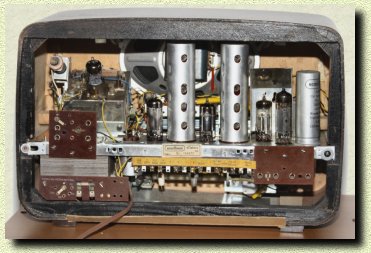

Rear view, the receiver was found in a quite good conditions.

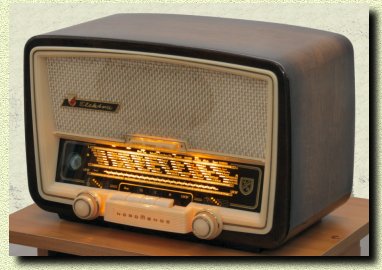

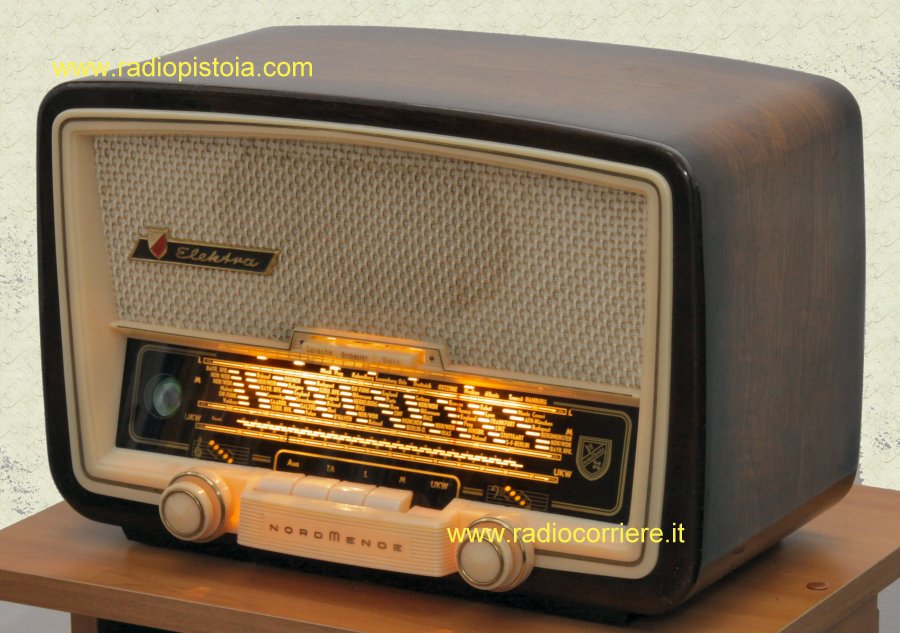

Receiver at the end ot this restoration, now sounds good perfectly.
