Click on the picture to enlarge

Builder Magnadyne
Model SV59
Year 1941 about
Bands MW - SW1 - SW2 - Phono
Tubes 6AG8 - 6K7G - EM4 - 6Q7G - 6V6G - 80
Tuning Superetherodyne with MF of 471,5Khz
Power 110-240 Vca
Size 46x35x27
Power audio tube 6V6G
Magic eye EM4


Click on the picture to enlarge

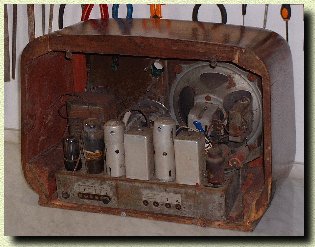

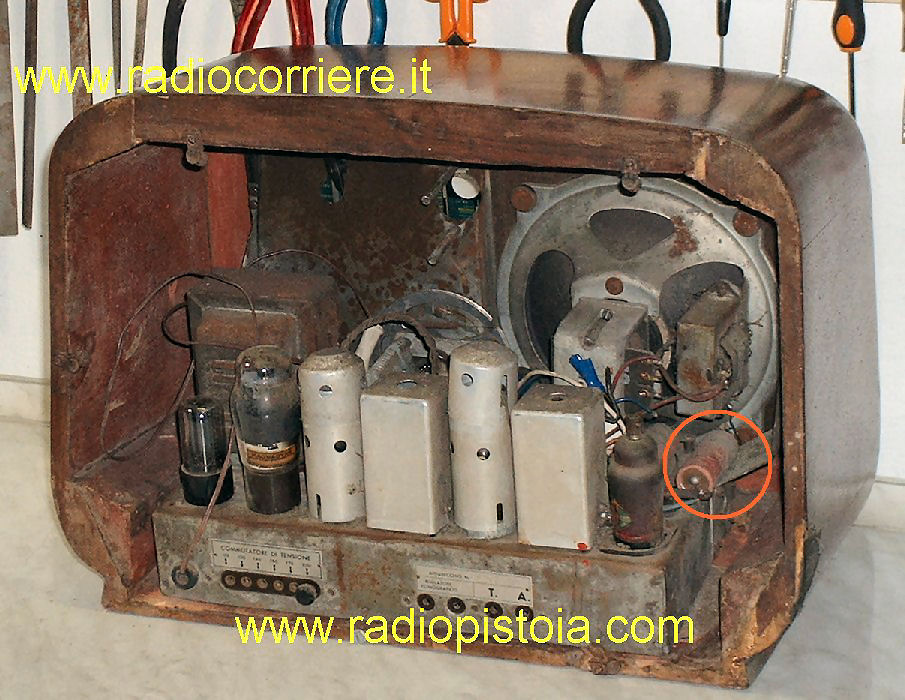

Internal view of the receiver just arrived in my laboratory, note the worts conservation.
 Click on the picture to enlarge
.

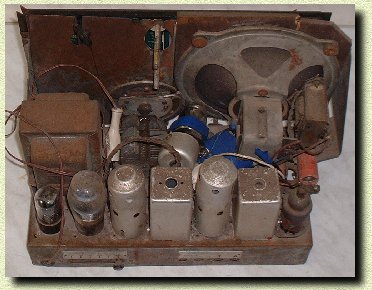

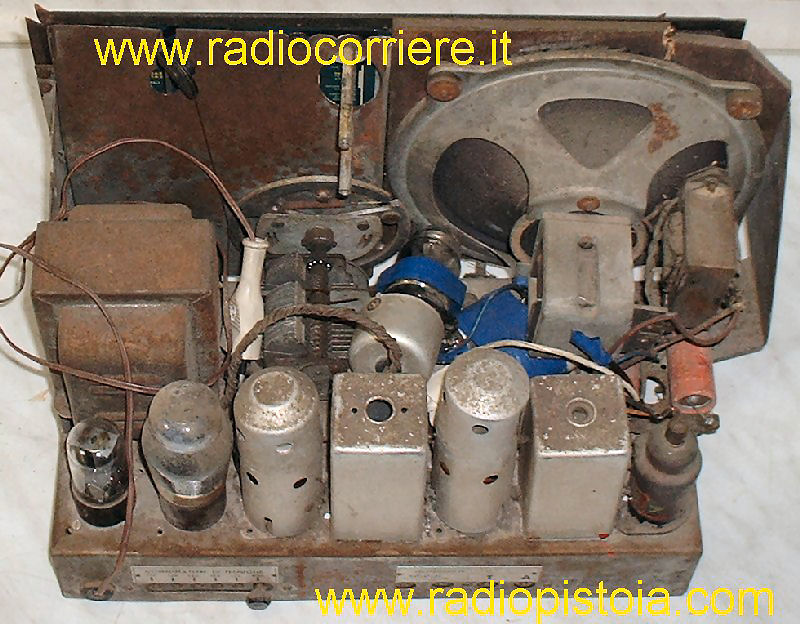

Intenal view of the chassis removed from the furniture, rust everywhere and big damages... (!)

Click on the picture to enlarge

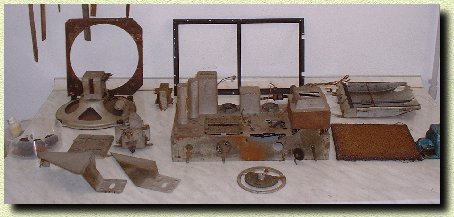

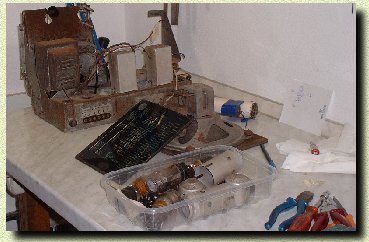

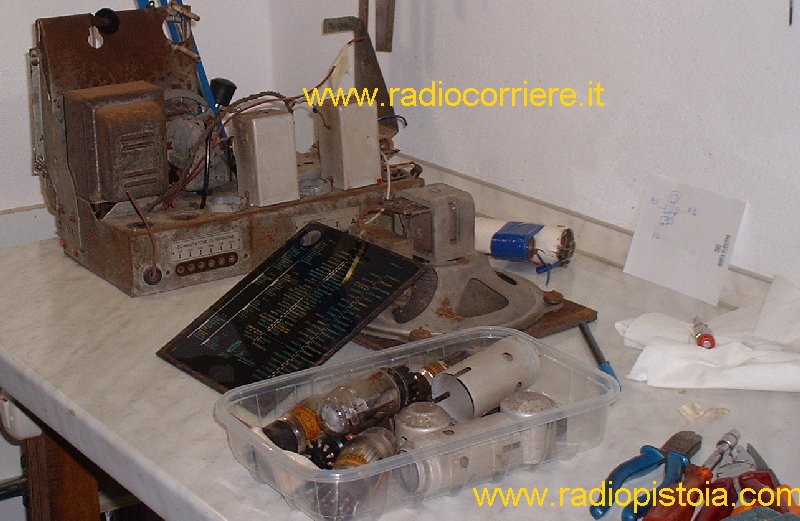

And now let's start with the restoration! A great job


.

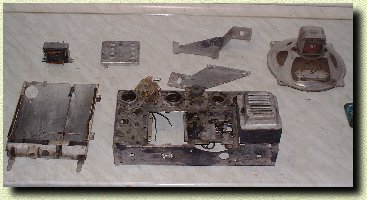

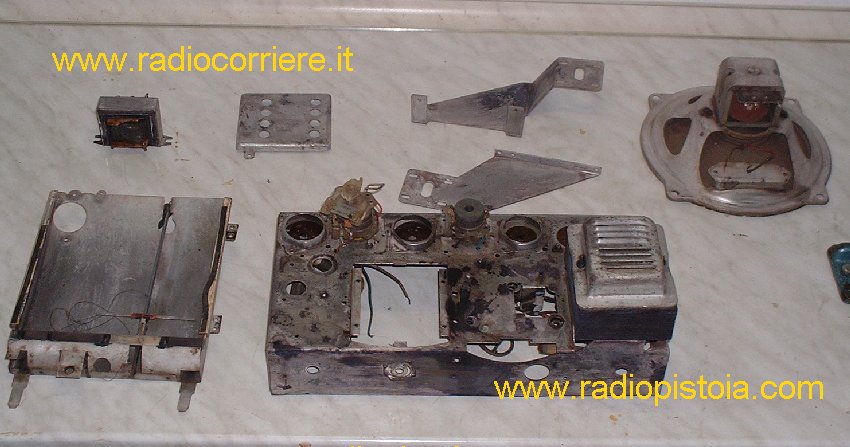

 The receiver has been disassembled as possible


Note the chassis, the restoration of this radio has been a long and very patience job.


  Click on the picture to enlarge

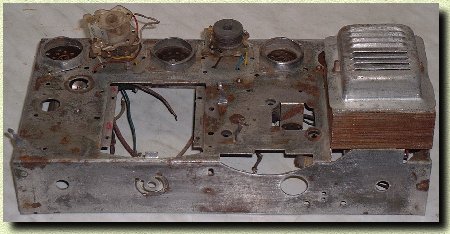

Here all the iron parts cleaned

Click on the picture to enlarge

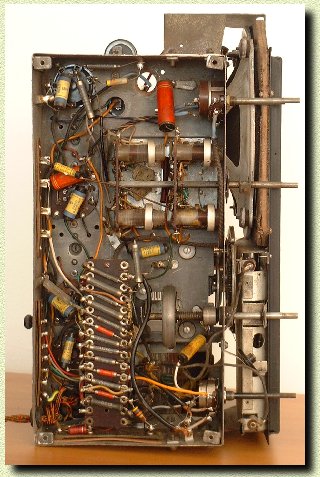

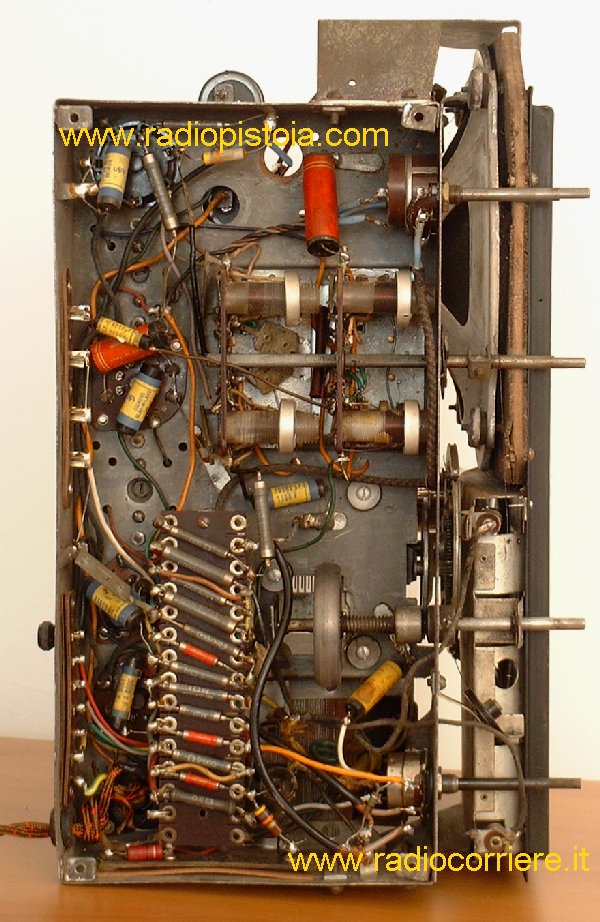

And now, after a crazy rewiring here the chassis with its original components






Click on the picture to enlarge

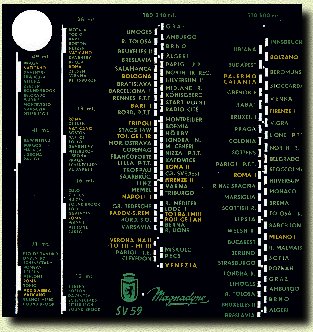

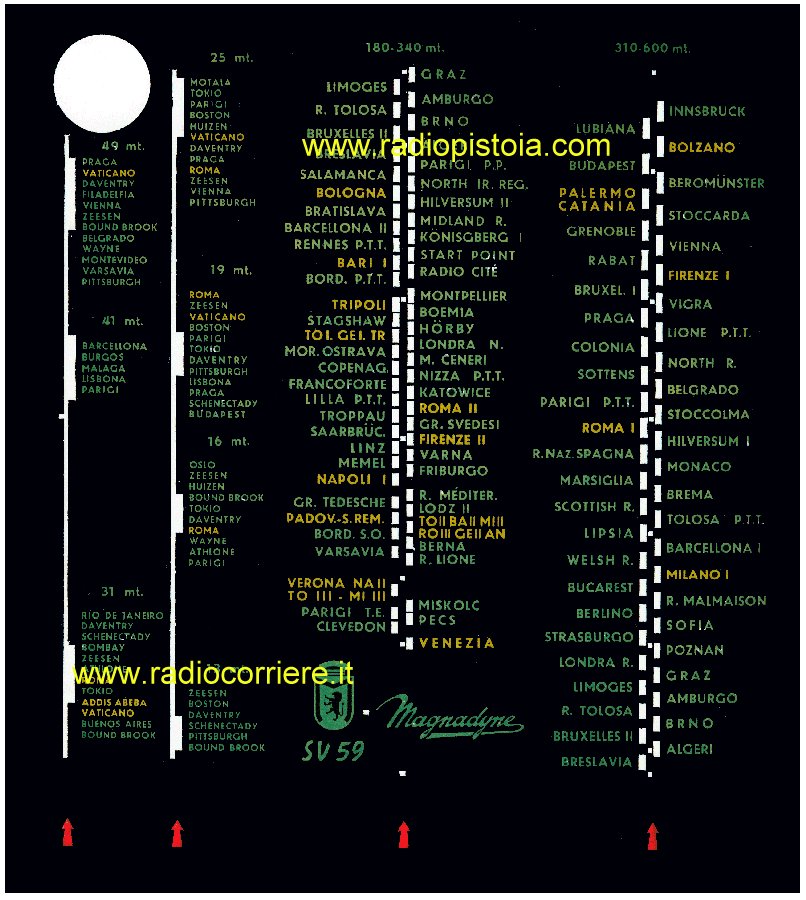

Close up picture of the glass tuning scale, the only thing in this radio without great damages, really incredible.
Clicca sulla immagine per ingrandirla


Detailes view of the tube socket cleaning procedure, these sockets are really a bad contact factory

Clicca sulla immagine per ingrandirla
 The new power cable, after the restoration.

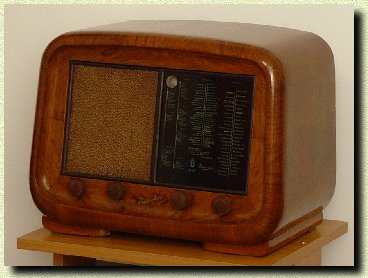

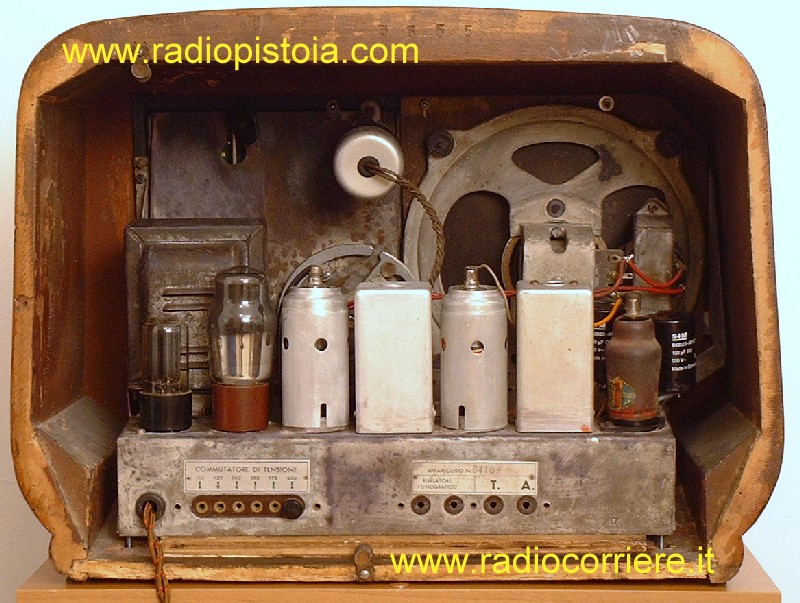

And now the receiver, when restoration completed, it sounds good!
