Builder Siemens - OLAP
Model 8-4-1
Year 1935
Bands OM-OC1-OC2-PHONO
Tubes EF42 EF42 ECH42 EF42 EQ80 EBC41 EBL1 EM4
Tuning Supereterodyne with  M.F.  465Khz and 10.7Mhz
Notes Power audio tube with EBL1
Power 110-220 Vac
Size 72x29x35

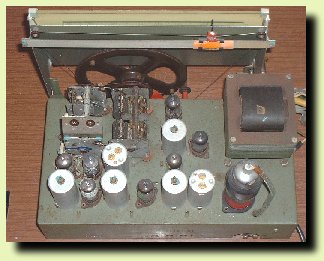

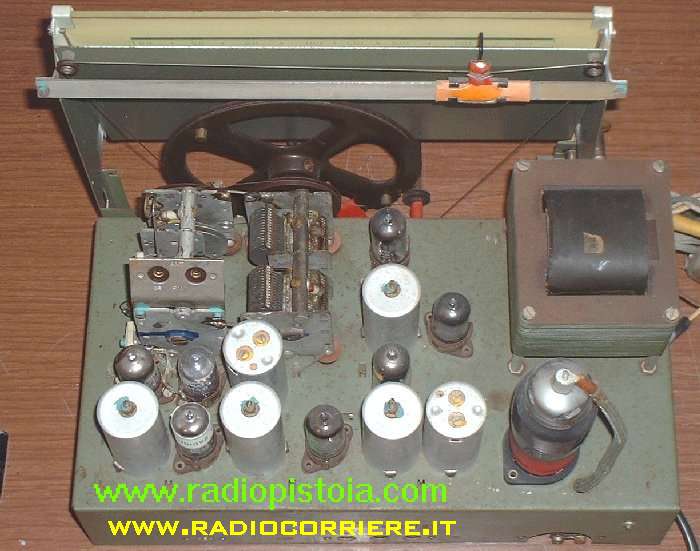

Click on the picture to enlarge Top view of the receiver. You can see on the bottom right the power tube amplifier EBL1

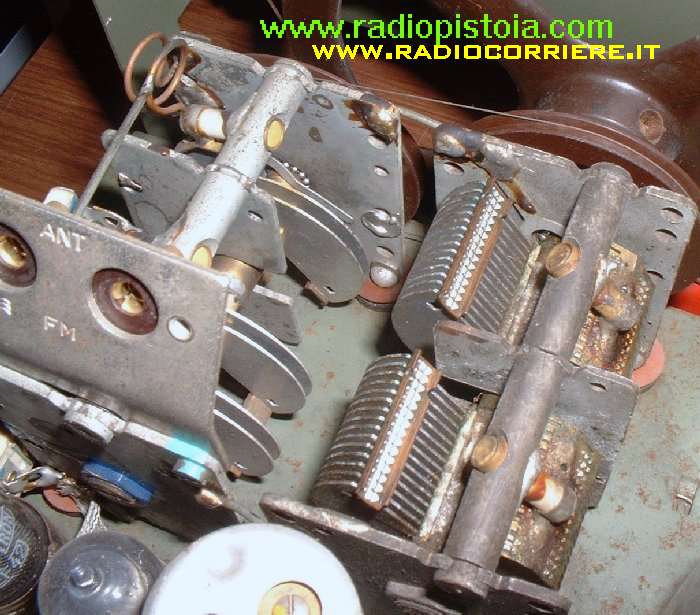

Click on the picture to enlarge Detailed viev of the variable capacitors, on the left the FM component, on the right the AM one.

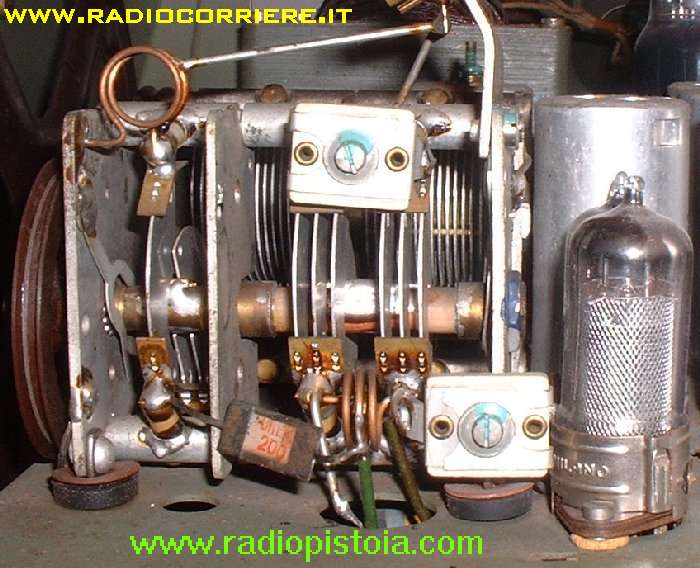

Click on the picture to enlarge Capacitors group from the left side. You can see the mix tube and the two white compensators.

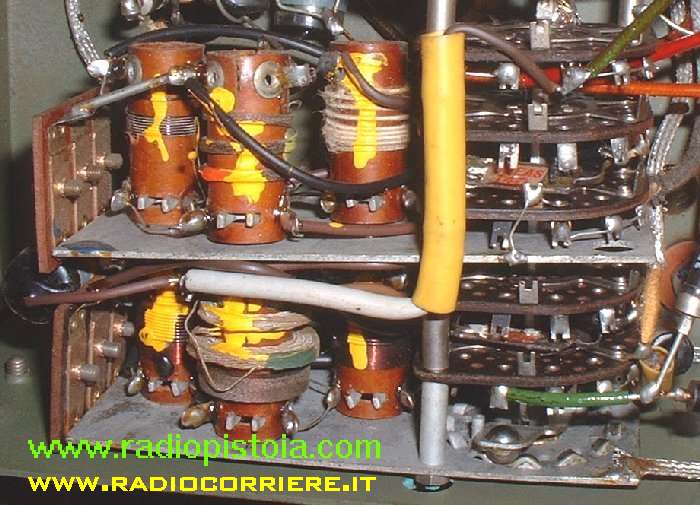

Click on the picture to enlarge Another view of the AF group, this time the coils assembly, for the medium and short waves.
Click on the picture to enlarge

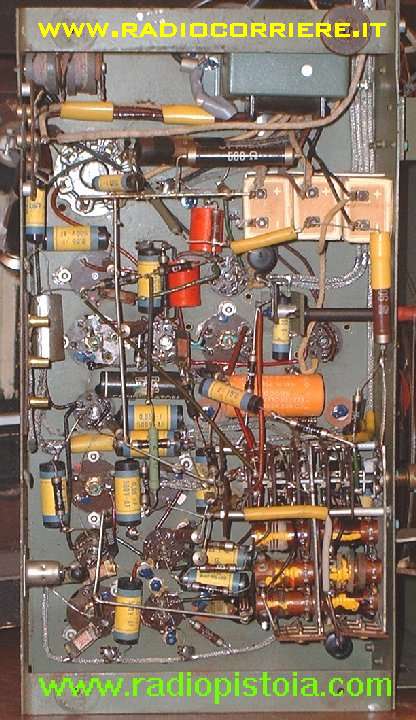

A global view of the receiver from the bottom.

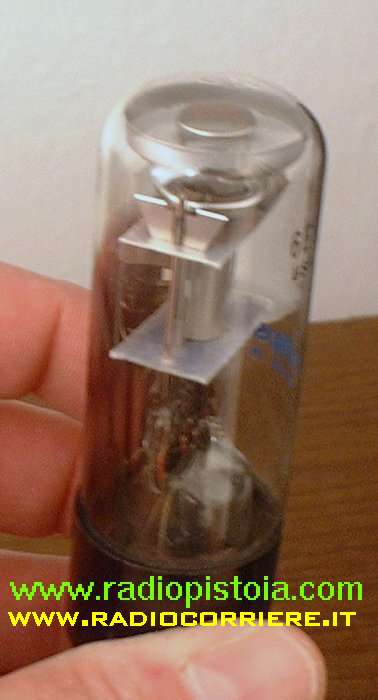

.Click on the picture to enlarge		 Detailed view of the magic eye tube 6E5G used on this receiver
