| Builder | Gerufon |
| Model | Ultra Ferrit 58W |
| Year | 1952 |
| Bands | OL - OM - OC1 - OC2 - MF |
| Tubes | ECC85 EF89 EF89 EF80 EAA91 EF85 ECH81 EBF89 EF86 EL84 EM80 |
| Tuning |
Superetherodyne with MF at 455Khz and 10.7Mhz |
| Power | 110-220 Vca |
| Size | 73 x 44 x 35 |
| Power audio tube | EL84 |
| Magic eye | EM80 |
 |

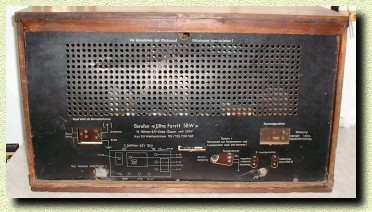

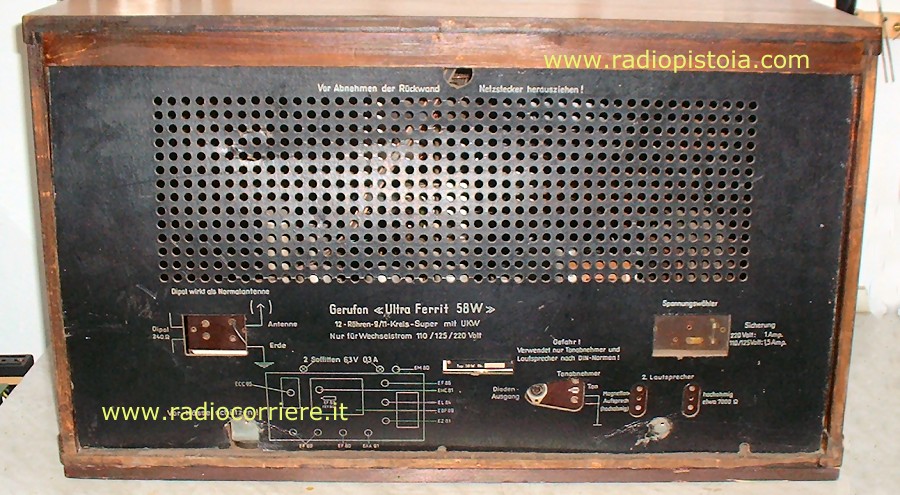

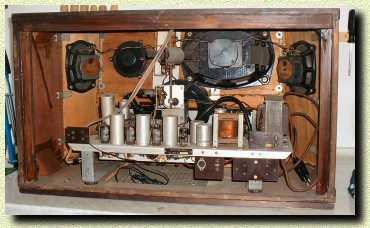

Rear view of the receiver when just arrived into my labratory, in a quite good status. |
 |

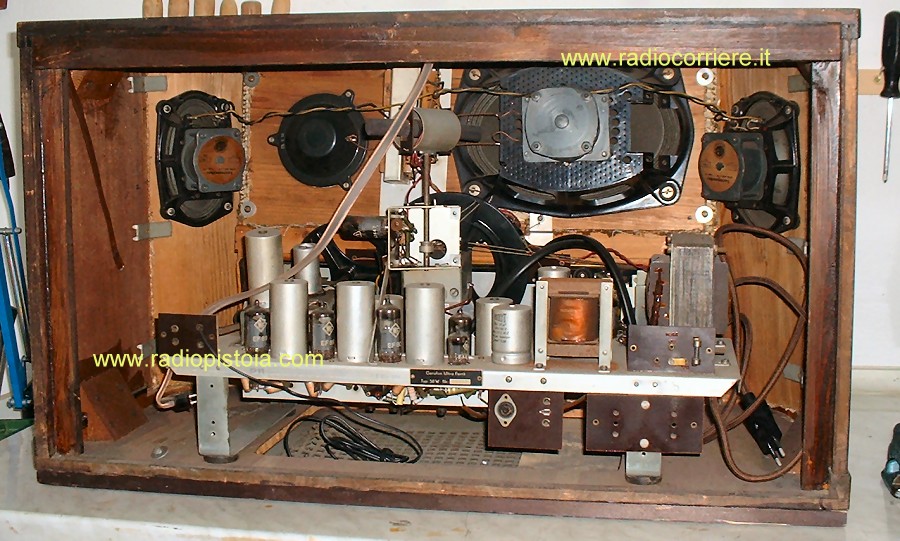

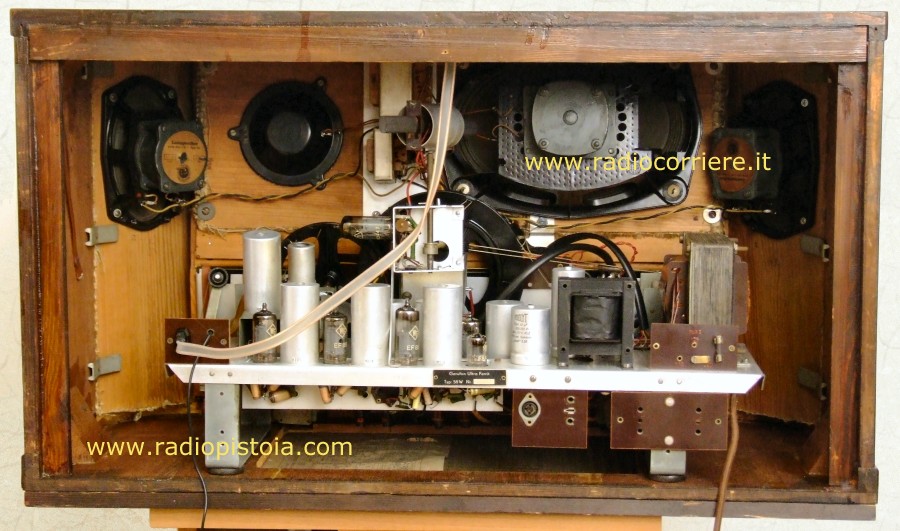

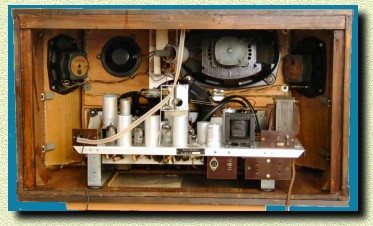

Internal view of the receiver, note the great quantity of components and loudspeakers. |
 |

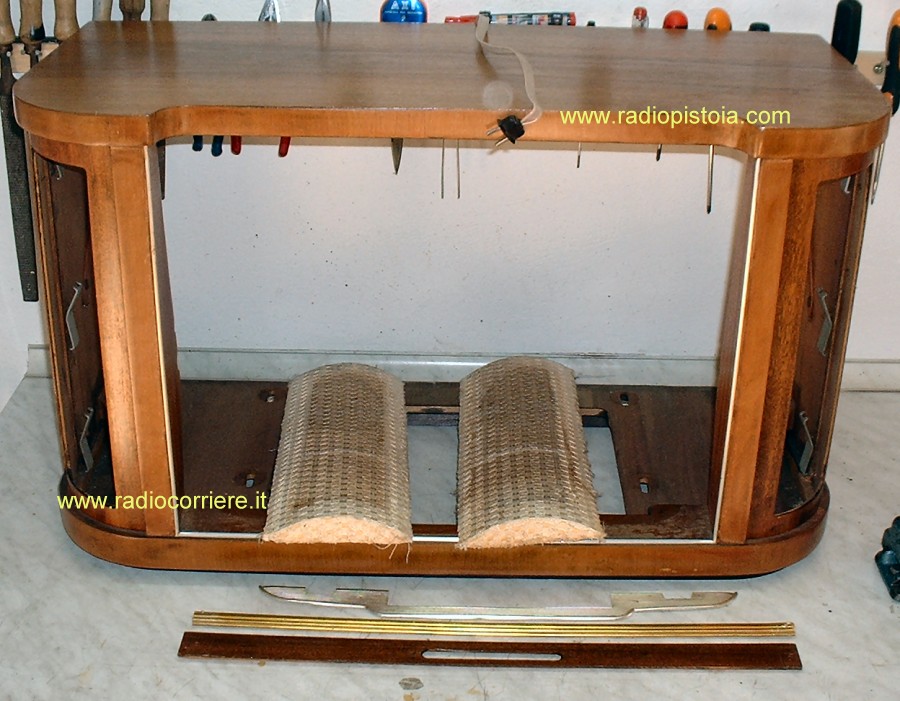

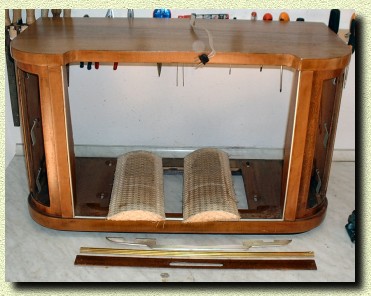

View of the wood furniture completely disassembled during the restoration process. |
 |

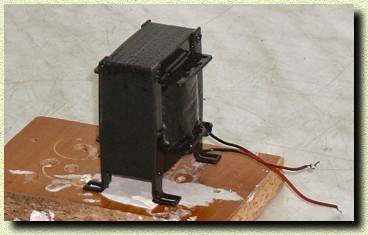

The output transformer
during the restoration.
|
 |

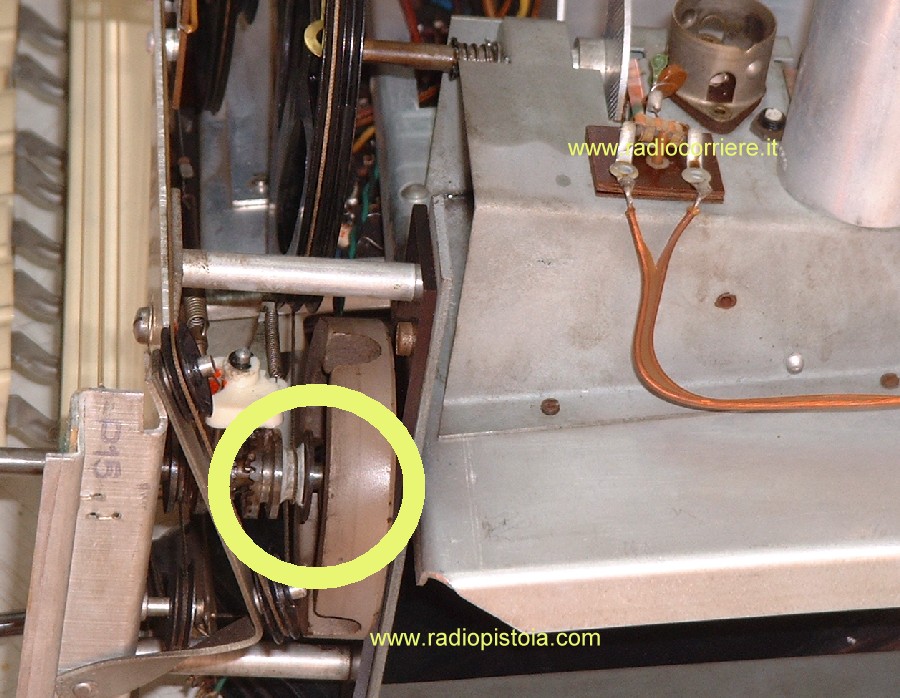

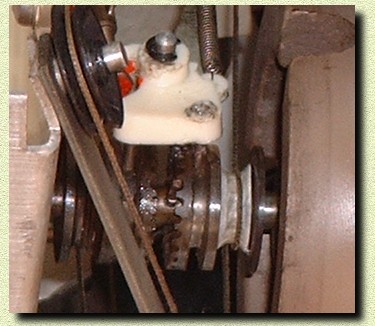

Close up picture of the tuning knob with its mechanical gear. In these receivers there are always two dial indicators, one for the AM and one for the FM, Choosing the desired band with the keyboard the mechanism arm one or other capacitors and dial indicator. |
 |

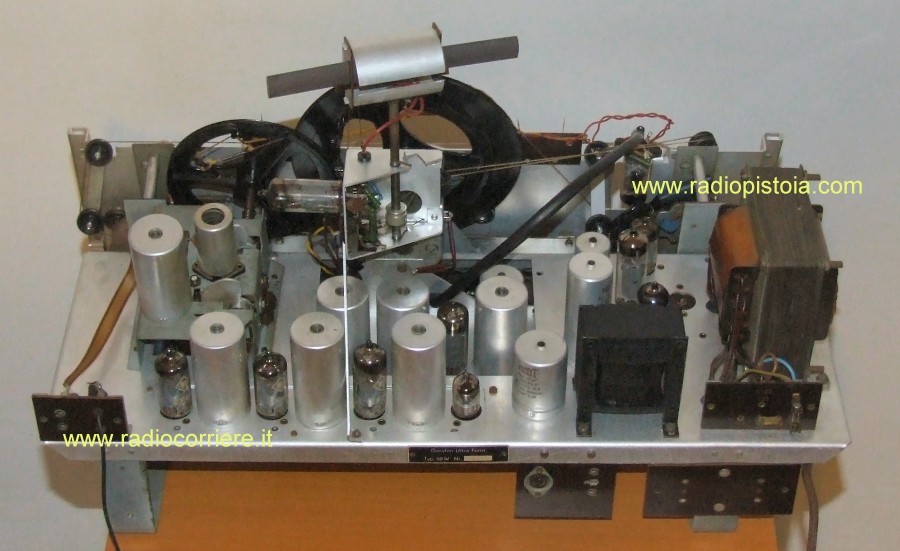

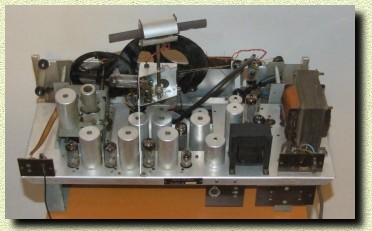

Top view of the chassis, note the lot of IF transfomers, separated from the AM and FM band. |
 |

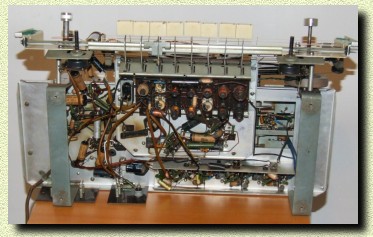

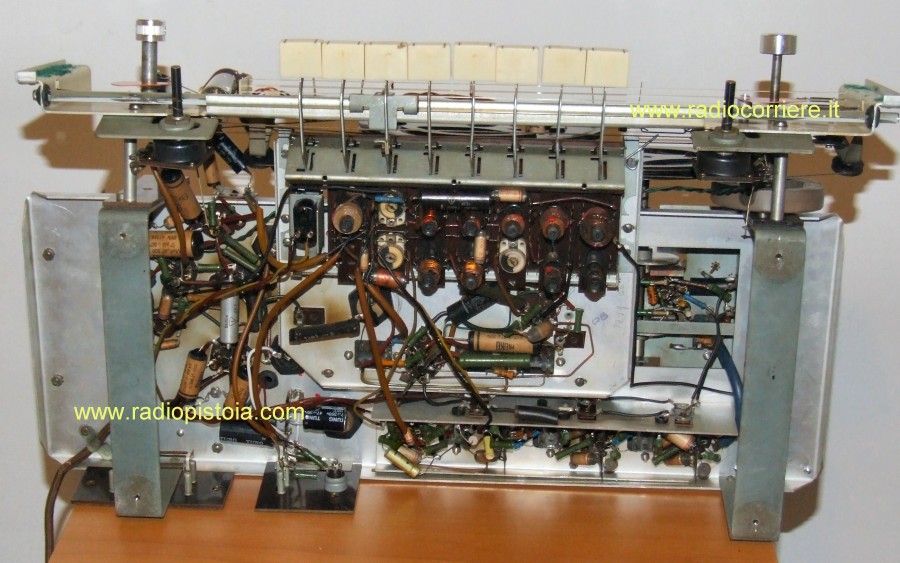

Bottom view of the chassis, note the great quantity of components and all the IF chain shielded from the rest of the components. |
 |

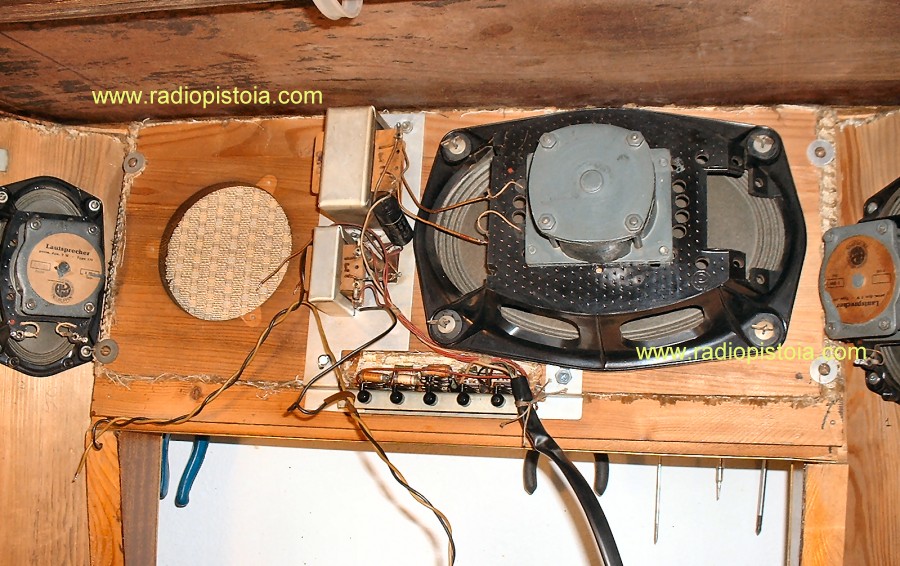

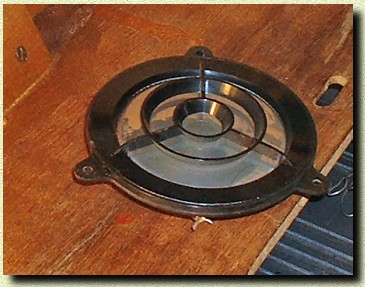

Detailed view of the very big woofer loudspeaker. |
 |

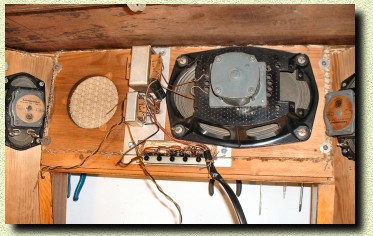

Close up picture of the tweeter loudspeaker. In these top-receivers the sound performed is very good. |
 |
