Builder Ducretet
Model L02 UF
Year 1952
Bands OM - OC1 - OC2
Tubes UBC41 - UY41 - UL41 - UF41 - UCH42
Tuning

Superetherodyne with MF at 455Khz

Power 110-240 Vca
Size 400 x 220 x 270
Power audio tube UL41
Magic eye not present


Click on the picture to enlarge

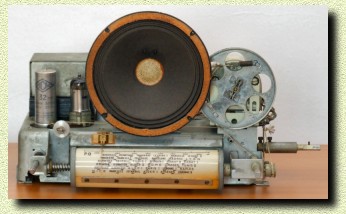

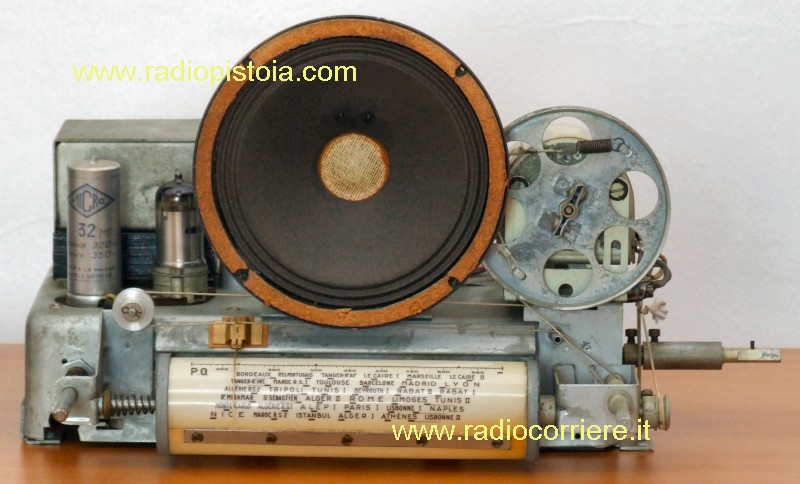

Front view of the chassis, this is a very nice little french receiver where the loudspeaker is mounted directly on the main frame.
Click on the picture to enlarge

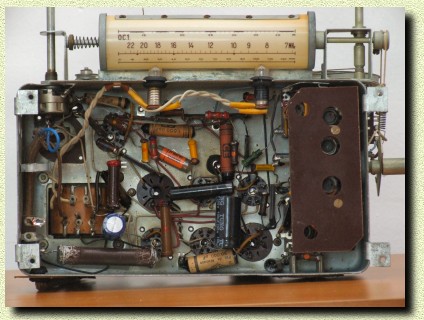

Bottom view of the chassis, note the rotating tuning scale that spins when the operator move the band switch
Click on the picture to enlarge

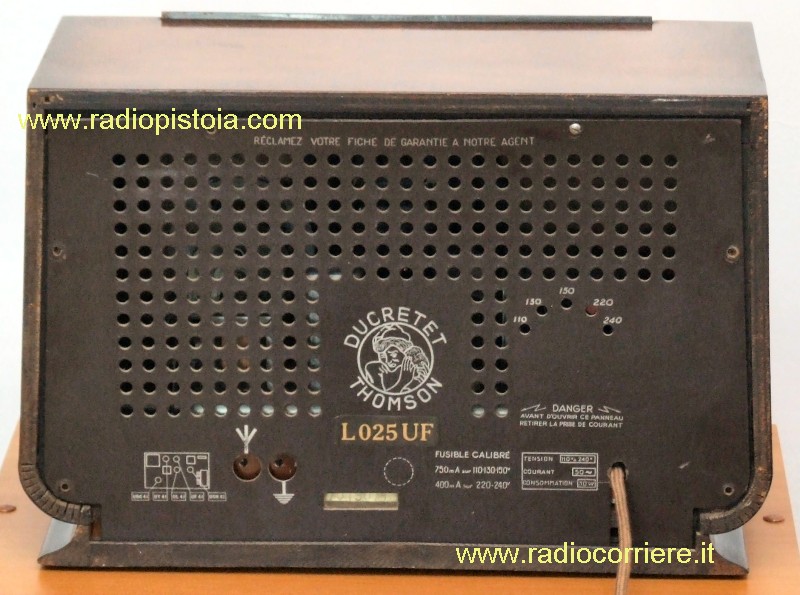

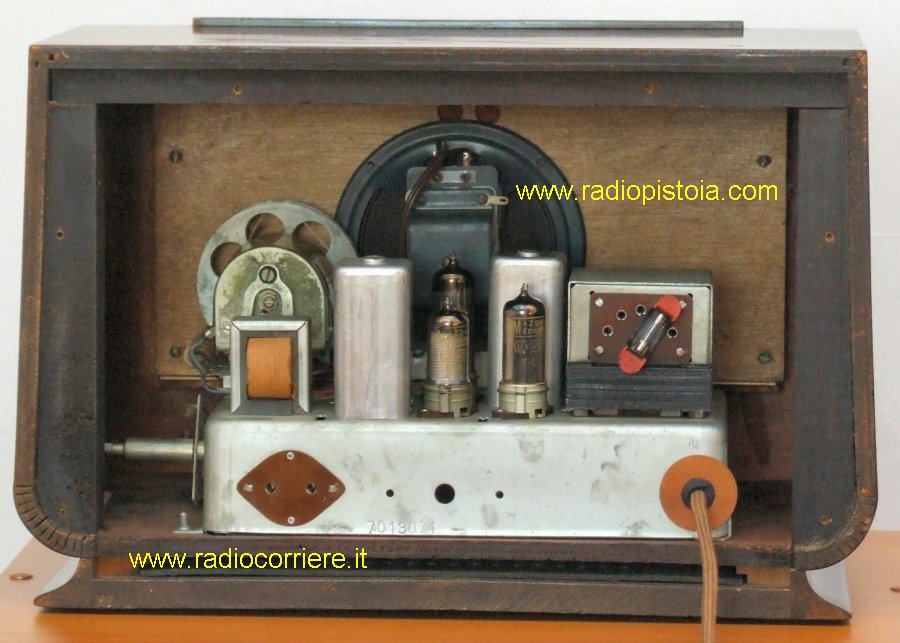

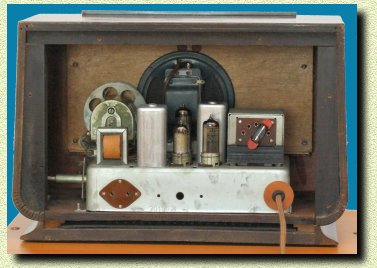

Rear view, the backplane is in perfect conditions too, like all the receiver.
Click on the picture to enlarge

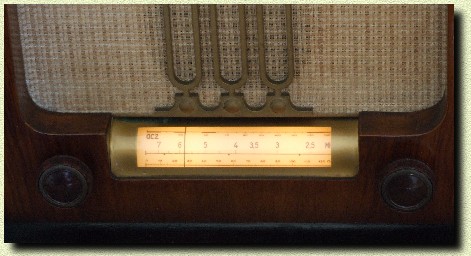

Close up view of the lighten tuning scale, this is a very simply receiver, with the three classical bands, LW, MW and SW.
