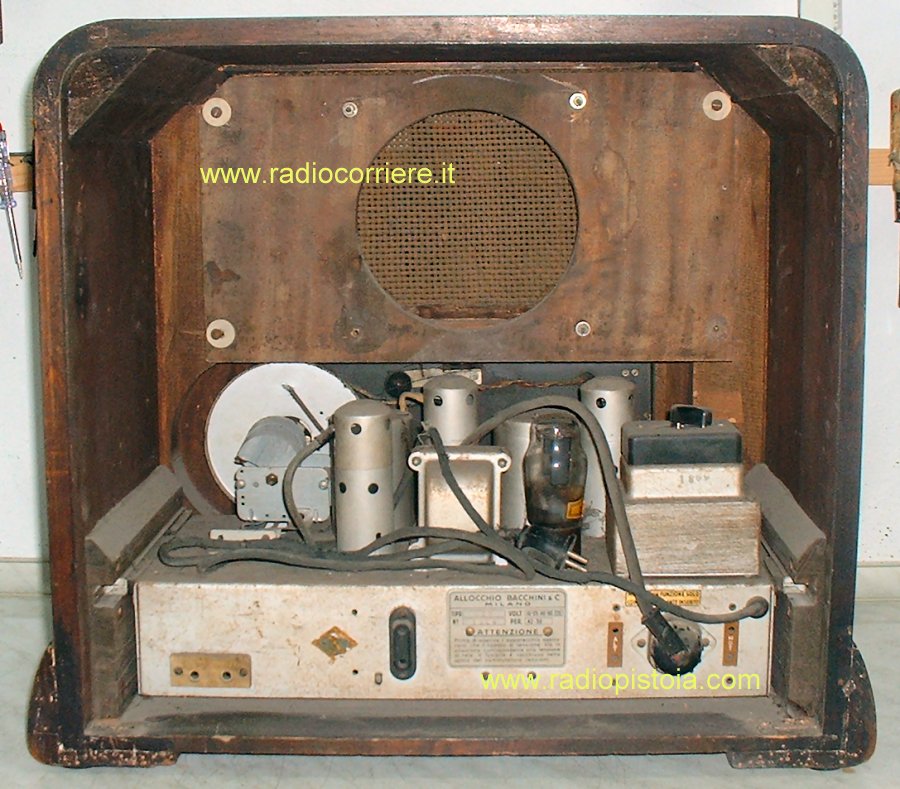

Here the big and HEAVY receiver just arrived
into laboratory for its restoration.
|
|

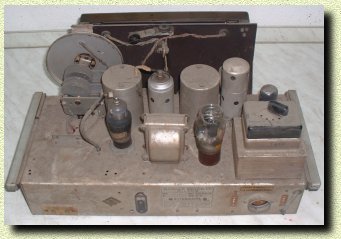

Internal view, years ago the radio was scraped,
remover loudspeaker, damaged internal wiring... really a disaster.
|
|
|
|

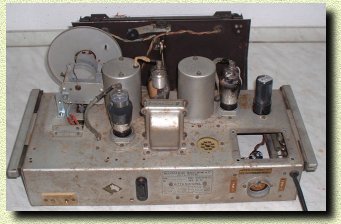

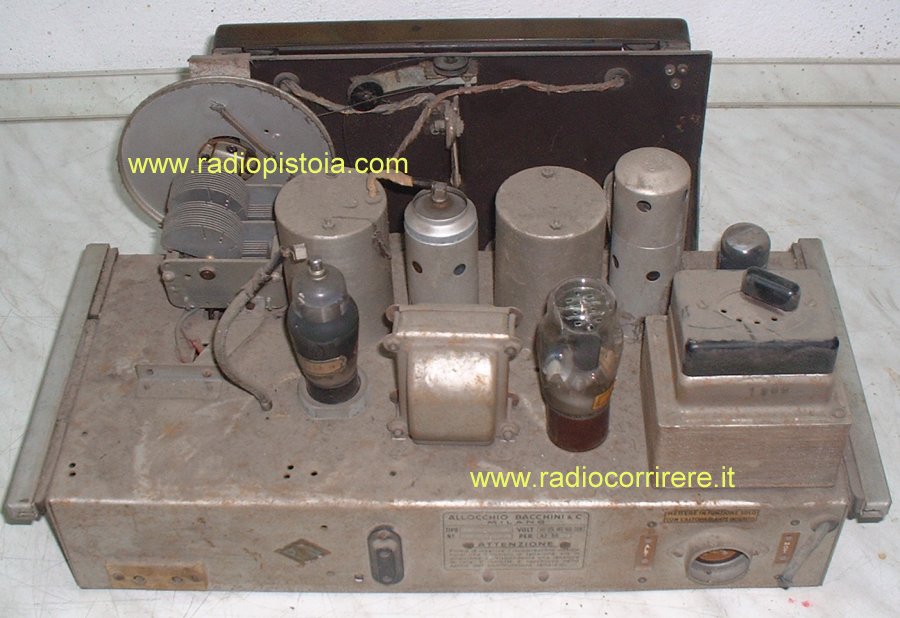

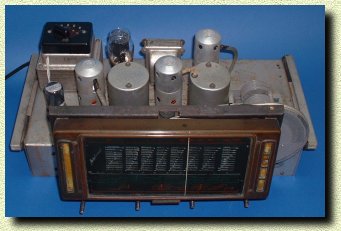

Top view of the chassis, dust and rust everywhere.
|
|

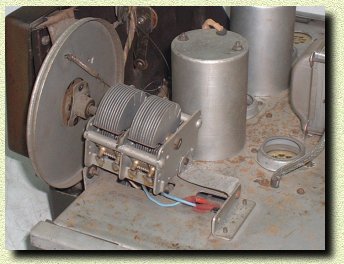

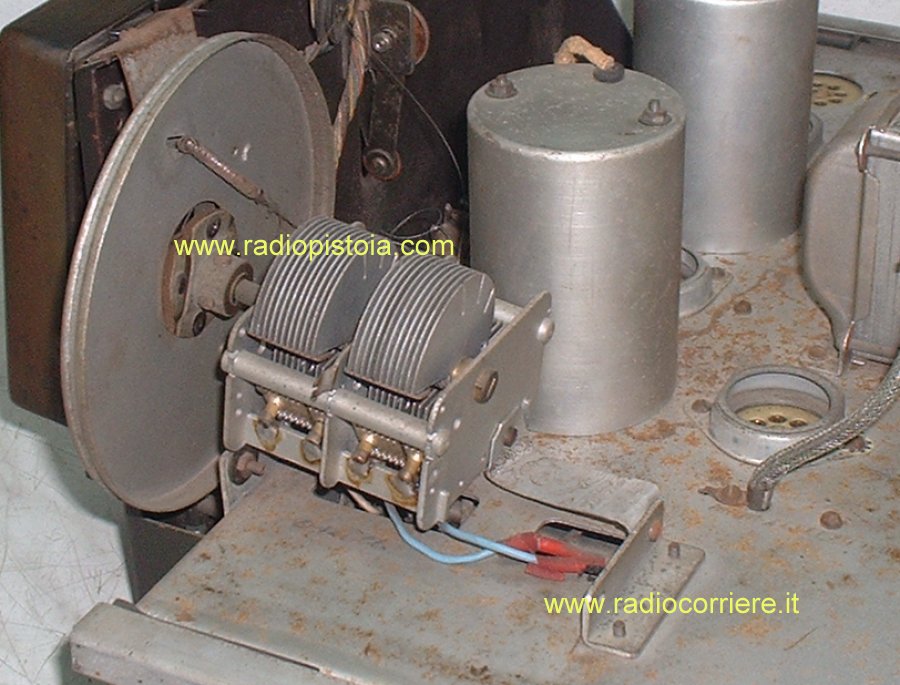

All the tuning system was damaged, the variable capacitor
was changed with another..
|
|
|
|

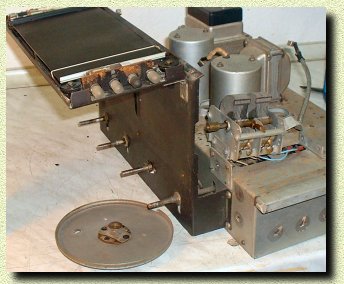

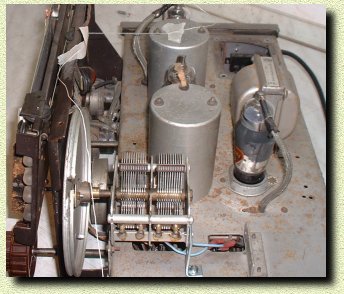

Picture token during the tuning scale wiiring recabling.
|
|

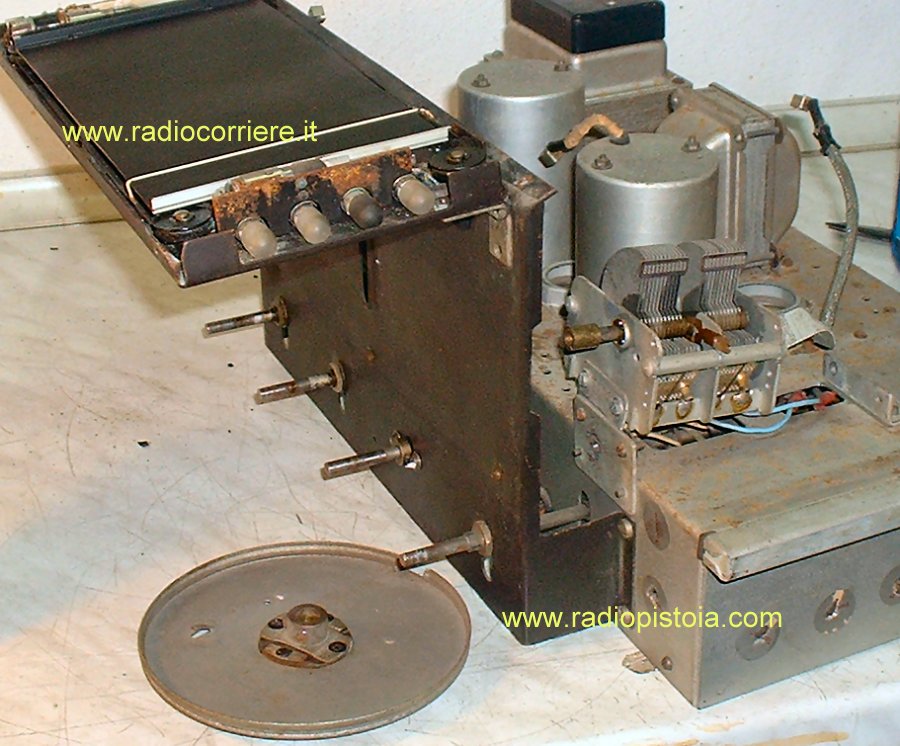

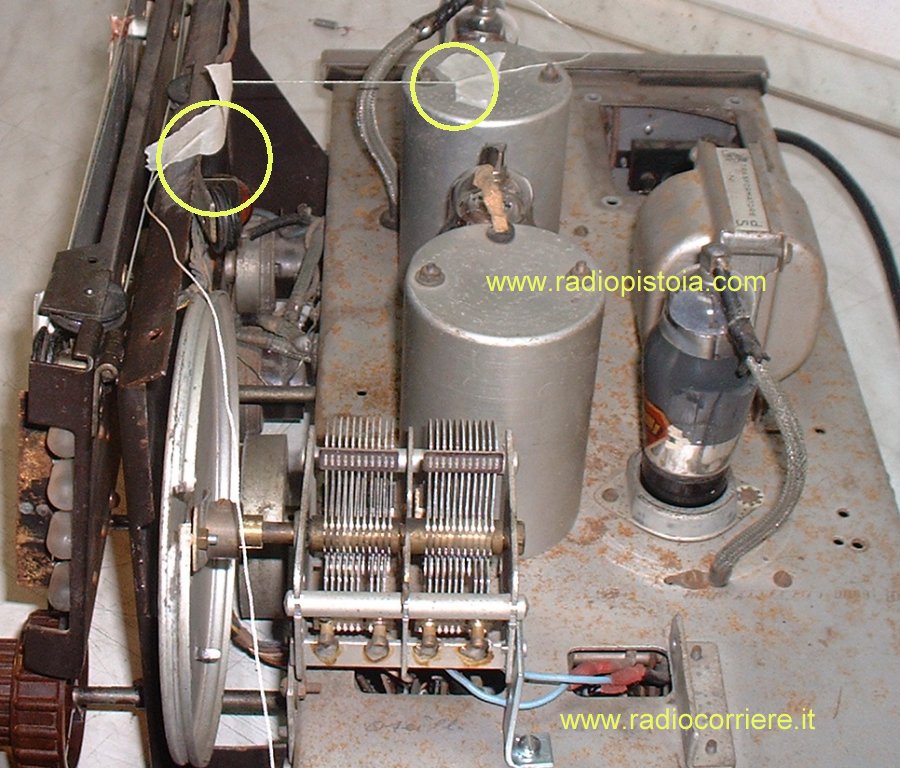

Another picture token during the tuning scale
restoration operations.
|
|
|
|
The power transfromer has die, the 220 coil
was damaged too..
|
|

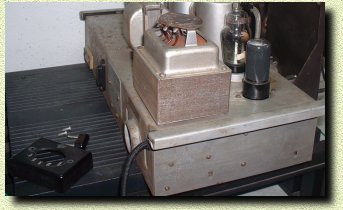

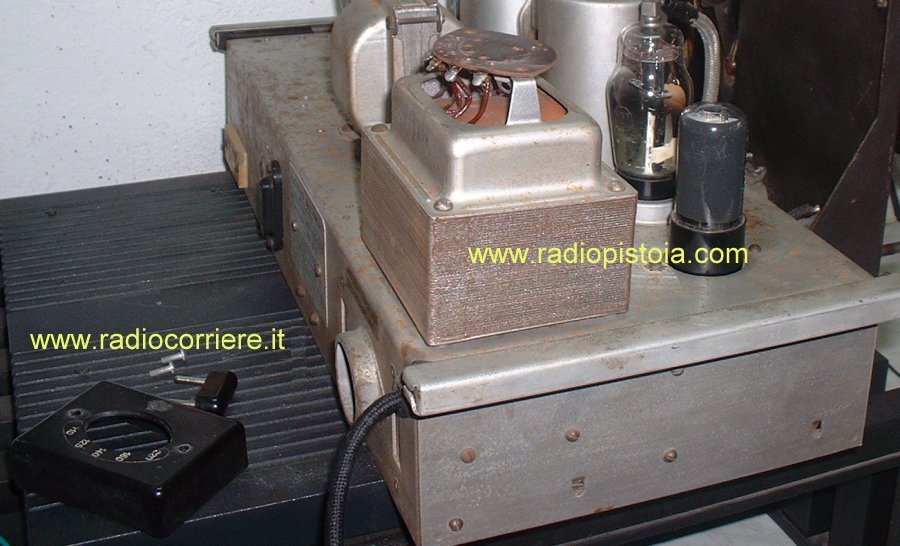

Here the chassis just removet the power trasformer.
|
|
|
|

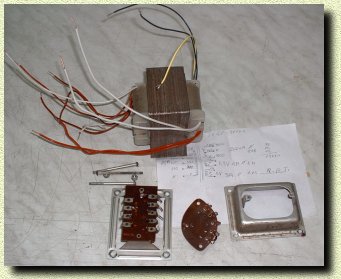

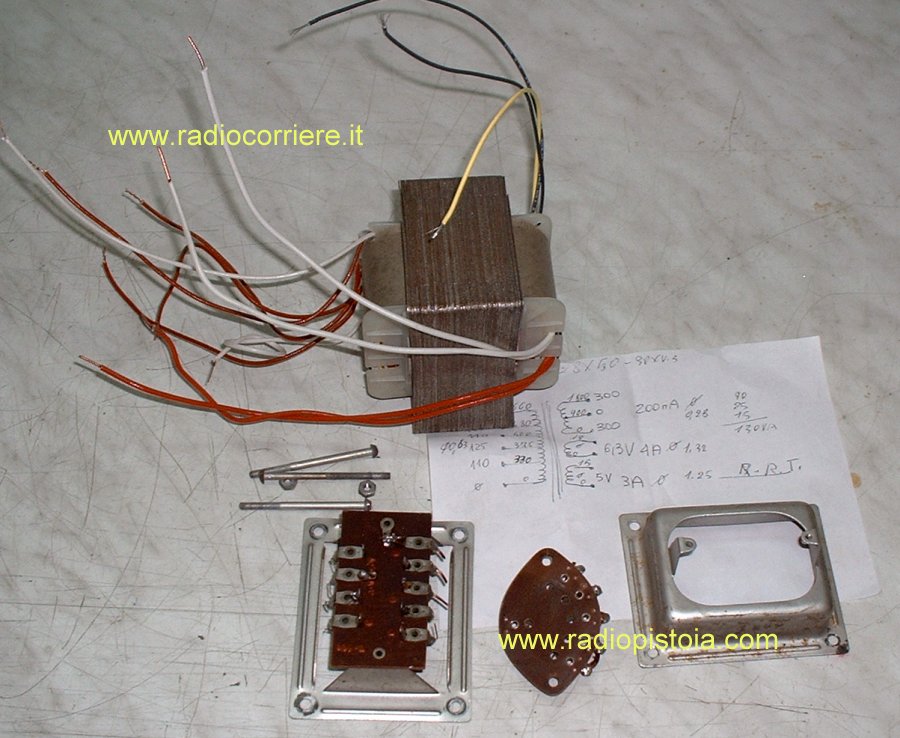

Here the transfomer just rewound, an operation
really heavy..
|
|

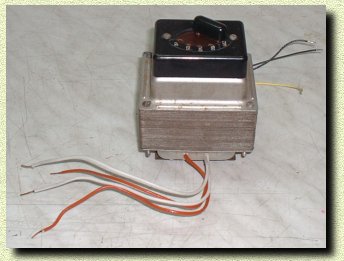

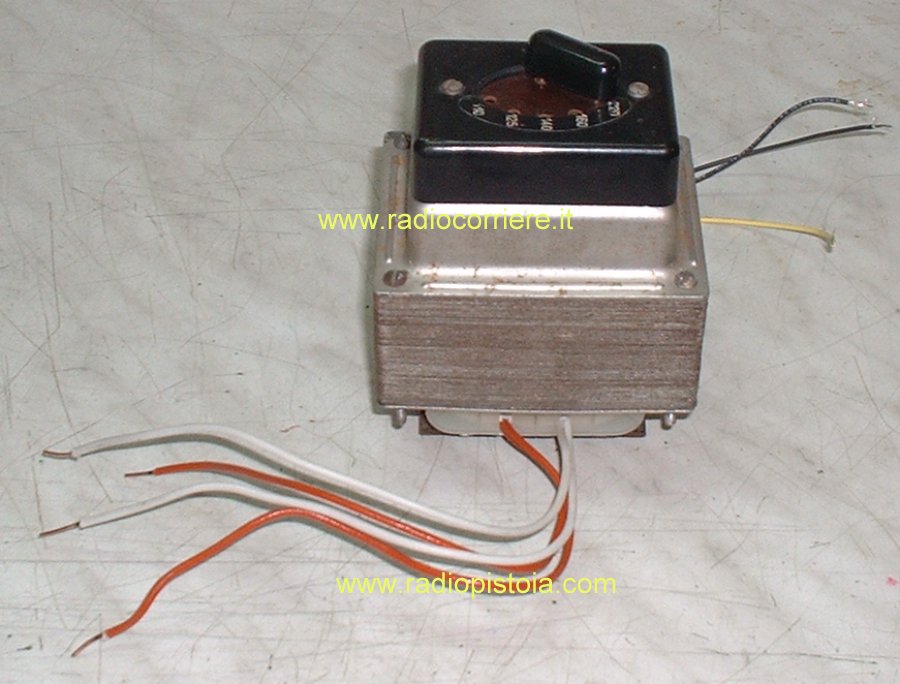

Closeup of the transformer reassembled, ready
and working again.
|
|
|
|

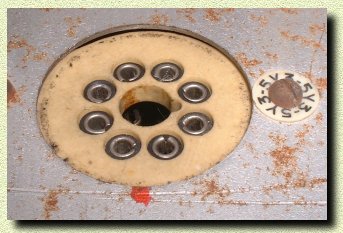

Here a detailed view of the tag, near each
tube with its type.
|

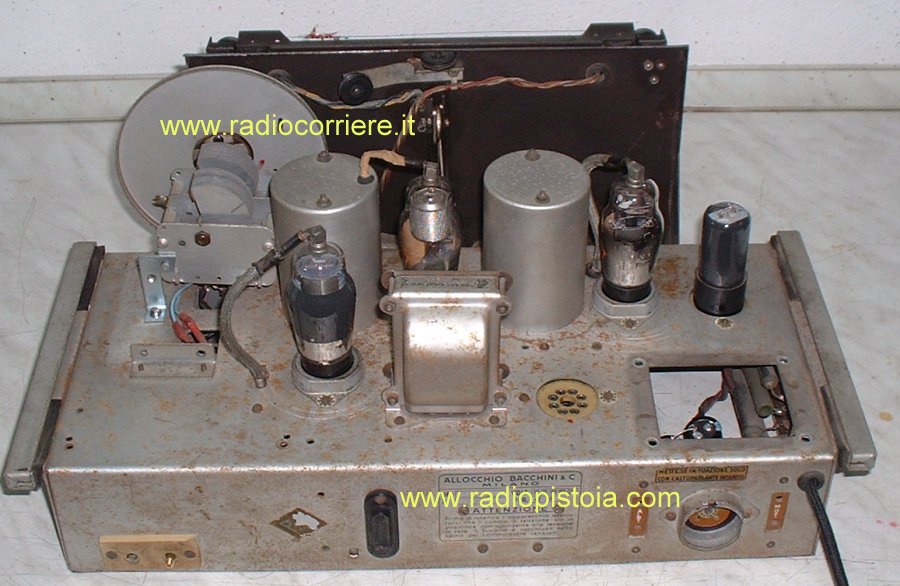

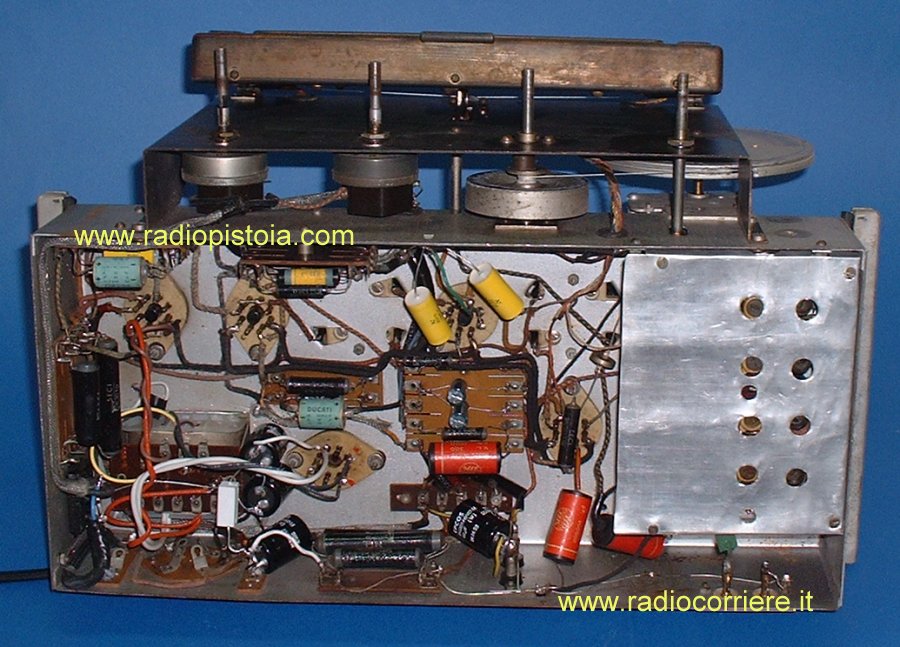

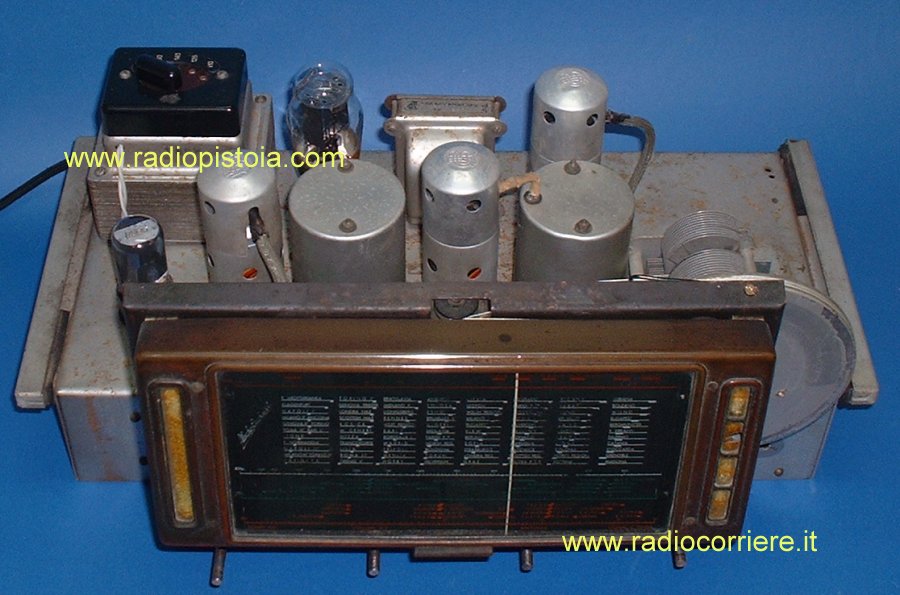

| Here the chassis, when finished its restoration. |
|
|
|

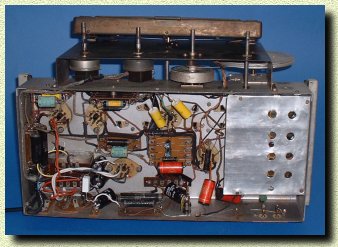

The chassis, view from the bottom. |
| Nice poster advertising, from the past. |
|
|
|

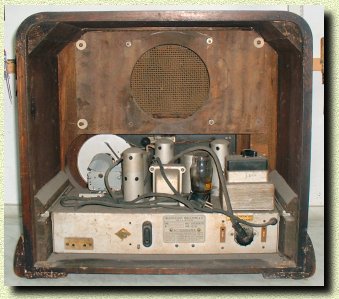

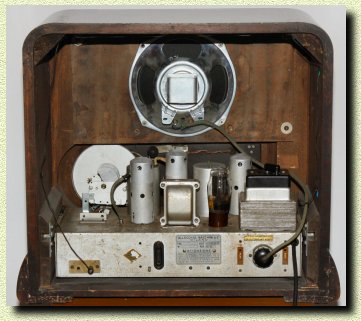

Internal view of this BIG and important receiver
when finished its restoration. |

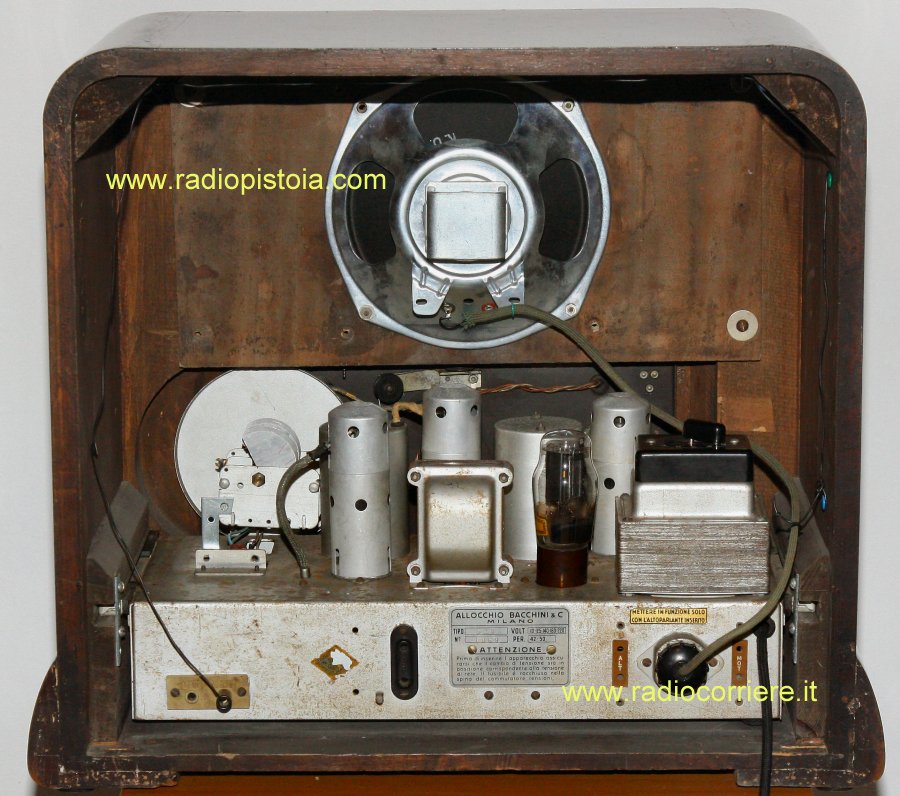

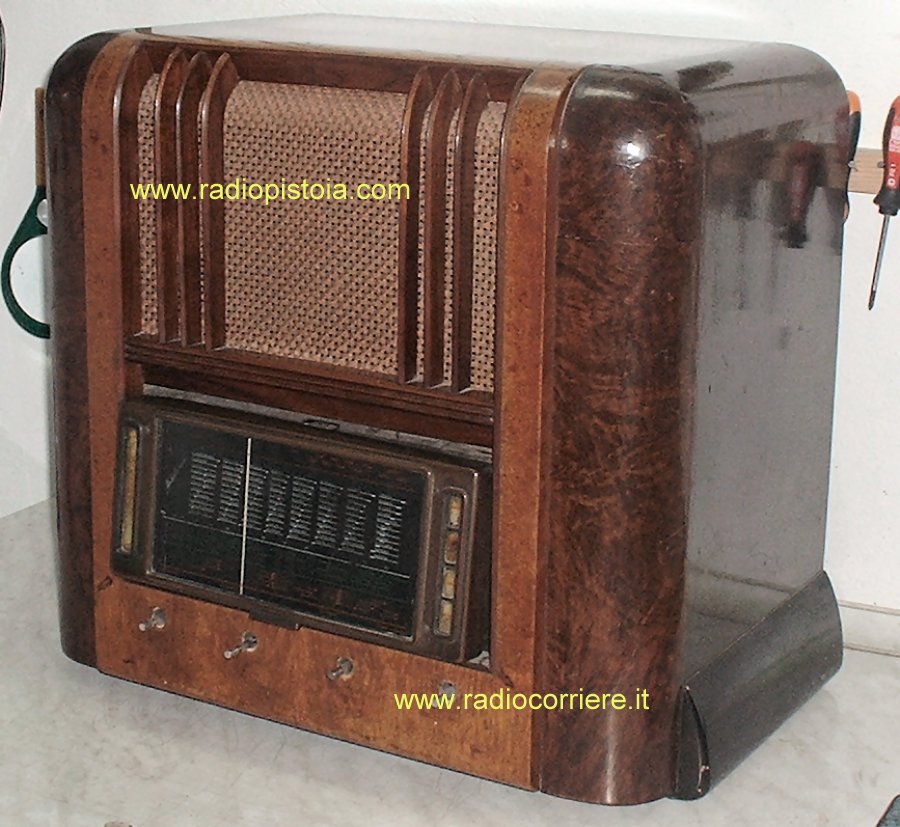

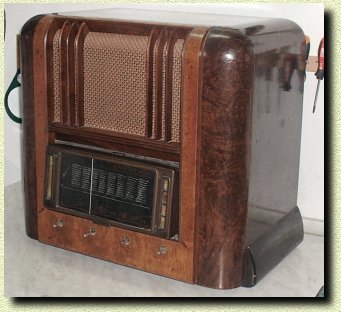

| The final aspect of the radio, ready to be returned
to the customer. |
|
